SKU: SAPF206-20.RND

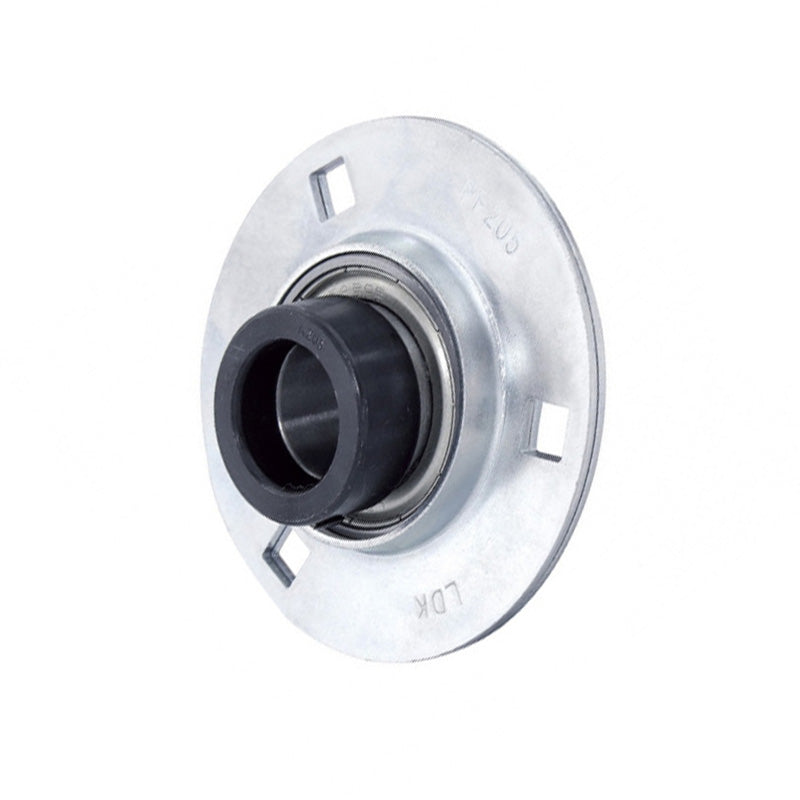

SAPF206-20 Round 3 Bolt Pressed Steel Bearing Housing with 1-1/4 inch Collar Insert
SAPF206-20 Round 3 Bolt Pressed Steel Bearing Housing with 1-1/4 inch Collar Insert
Regular price
$17.24
ex VAT
Regular price
Sale price
$17.24
ex VAT
Equivalent to: SLFE1-1/4EC
In stock
Price Break
3+
$8.14
4+
$7.69
9+
$7.59
19+
$7.50
49+
$7.41
99+
$7.32
499+
$6.86
999+
$6.77
1999+
$6.68
2999+
$6.59
4999+
$6.41
Description
Description
|
3 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has an eccentric collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, collar & grub screw fixing Note: Bearing units of 40mm / 1-1/2 or larger have 4 bolt holes |
Equivalent: SLFE1-1/4EC
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SAPF
- Pitch Circle Diameter:
- 90.5mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 113mm |
| e | 90.5mm |
| m | 18mm |
| s | 11mm |
| t | 5.2mm |
| f | 71mm |
| B | 35.7mm |
| n | 9mm |
| Bolt | M10 |
| Weight | 0.65 kg |
| d1 | 44.5mm |
| Dynamic load | 1520 N |
| Static load | 1020 N |
