SKU: SAL60TXE-2LS-SKF

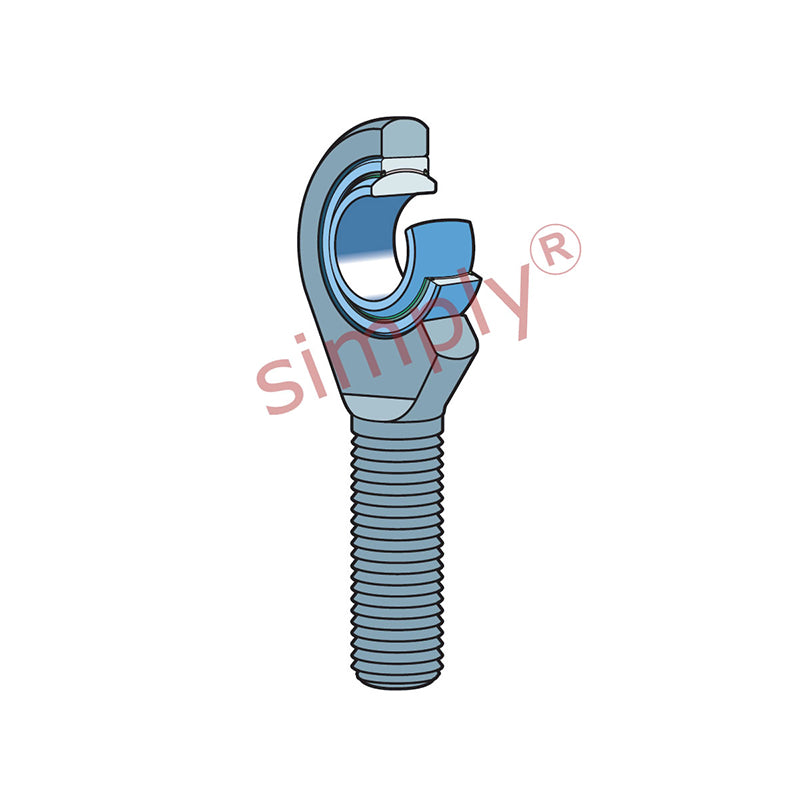

SKF SAL60TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M60x4 Thread
SKF SAL60TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M60x4 Thread
Regular price
$1,115.98
ex VAT
Regular price
Sale price
$1,115.98
ex VAT
In stock
Price Break
10+
$993.22
19+
$937.42
29+
$926.26
39+
$915.10
49+
$903.94
74+
$892.78
99+
$836.99
199+
$825.83
249+
$814.67
499+
$803.51
999+
$781.19
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M60x4
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 60mm
- Liner Type:
- PTFE Fabric Lined
Technical
Technical
| d | 60mm |
|---|---|
| d2 max | 137mm |
| G | M60x4 |
| B | 44mm |
| C1 max | 39mm |
| h | 225mm |
| a | 6deg |
| Dynamic load C | 695 kN |
| Static load Co | 360 kN |
| Weight | 6.25 kg |
| dk | 80mm |
| l1 min | 120mm |
| l2 max | 296mm |
| l7 min | 73mm |
| r1 min | 1mm |
