SKU: SAL35TXE-2LS-SKF

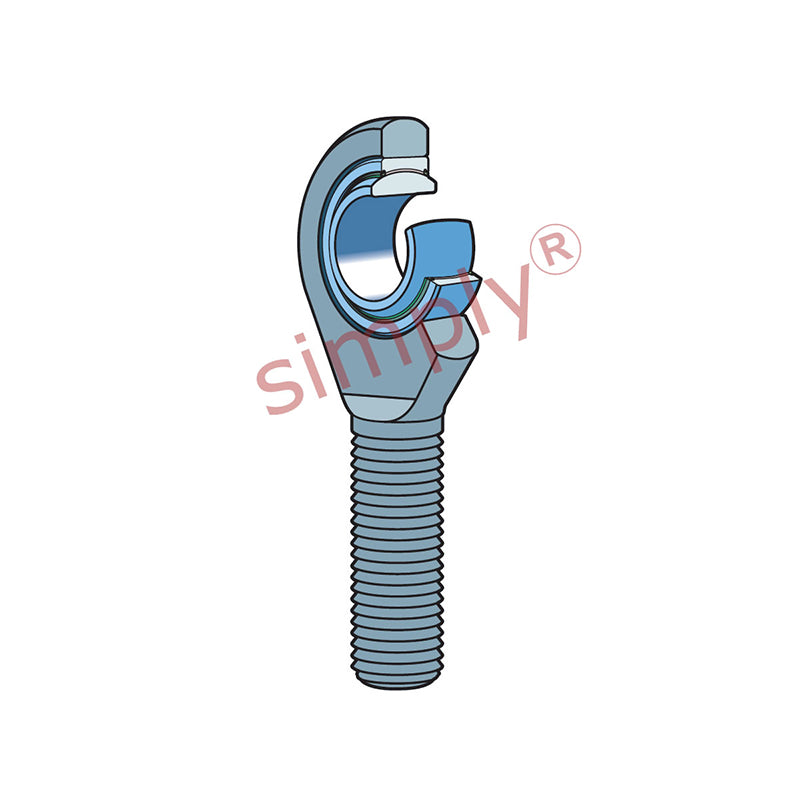

SKF SAL35TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M36x3 Thread
SKF SAL35TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Male Rod End M36x3 Thread
Regular price
$282.84
ex VAT
Regular price
Sale price
$282.84
ex VAT
In stock
Price Break
10+
$251.73
19+
$237.59
29+
$234.76
39+
$231.93
49+
$229.10
74+
$226.27
99+
$212.13
199+
$209.30
249+
$206.47
499+
$203.64
999+
$197.99
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M36x3
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 35mm
- Liner Type:
- PTFE Fabric Lined
Technical
Technical
| d | 35mm |
|---|---|
| d2 max | 84mm |
| G | M36x3 |
| B | 25mm |
| C1 max | 22mm |
| h | 130mm |
| a | 6deg |
| Dynamic load C | 224 kN |
| Static load Co | 110 kN |
| Weight | 1.3 kg |
| dk | 47mm |
| l1 min | 82mm |
| l2 max | 174mm |
| l7 min | 40mm |
| r1 min | 0.6mm |
