SKU: SAKAC14M-CDX

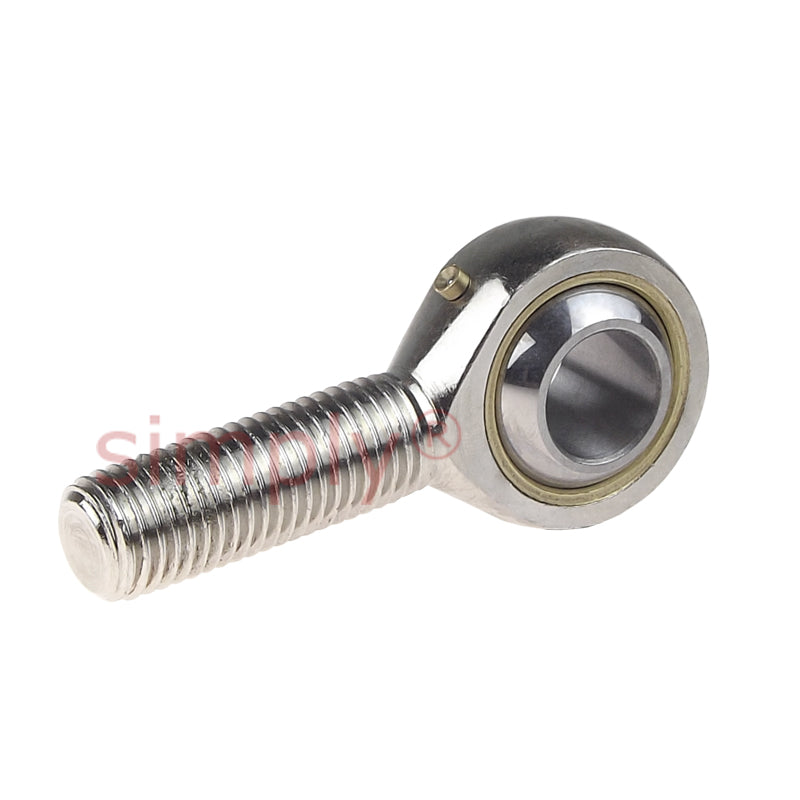

Codex SAKAC14M Right Hand Steel / Bronze Lined Plain Male Rod End M14 Thread
Codex SAKAC14M Right Hand Steel / Bronze Lined Plain Male Rod End M14 Thread
Regular price
$39.27
ex VAT
Regular price
Sale price
$39.27
ex VAT
Equivalent to: POS14 SM14 MB-M14 GAKFR14PB
In stock
Price Break
10+
$18.55
19+
$17.51
29+
$17.30
39+
$17.09
49+
$16.88
74+
$16.67
99+
$15.63
199+
$15.42
249+
$15.22
499+
$15.01
999+
$14.59
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: POS14 SM14 MB-M14 GAKFR14PB
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M14
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 14mm
- Material:
- Bronze Lined
Technical
Technical
| d | 14mm |
|---|---|
| d2 max | 37mm |
| G | M14 |
| B | 19mm |
| C1 max | 13.5mm |
| h1 | 60mm |
| Max misalignment angle | 16 degrees |
| Dynamic load | 17 kN |
| Static load | 17.3 kN |
| dk | 25.4mm |
| l1 min | 36mm |
| l2 max | 80mm |
| r1 min | 0.3mm |
| Weight | 0.13 kg |
