SKU: RSTO17-MB

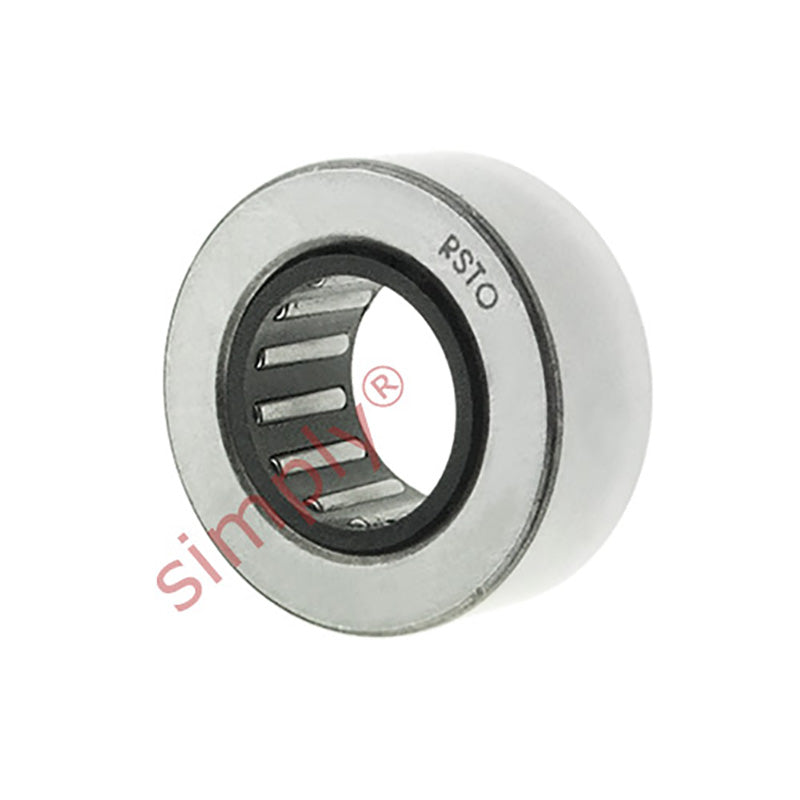

Major Brand RSTO17 Support Roller Without Axial Guidance Without Inner Sleeve 22x40x15.8mm
Major Brand RSTO17 Support Roller Without Axial Guidance Without Inner Sleeve 22x40x15.8mm
Regular price
$37.24
ex VAT
Regular price
Sale price
$37.24
ex VAT
In stock
Price Break
10+
$17.59
19+
$16.60
29+
$16.40
39+
$16.20
49+
$16.01
74+
$15.81
99+
$14.82
199+
$14.62
249+
$14.42
499+
$14.23
999+
$13.83
Description
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 40mm
- Width:
- 15.8mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 40mm |
| C | 15.8mm |
| E | 29mm |
| r min | 0.3mm |
| Speed rating | 2800 rpm |
| Dynamic load | 14200 N |
| Static load | 17600 N |
| Fatigue load limit Pu | 2080 N |
| Min radial force dynamic load | 12000 N |
| Max radial force dynamic load | 17300 N |
| Weight | 88 g |
