SKU: RPNA45/62-MB

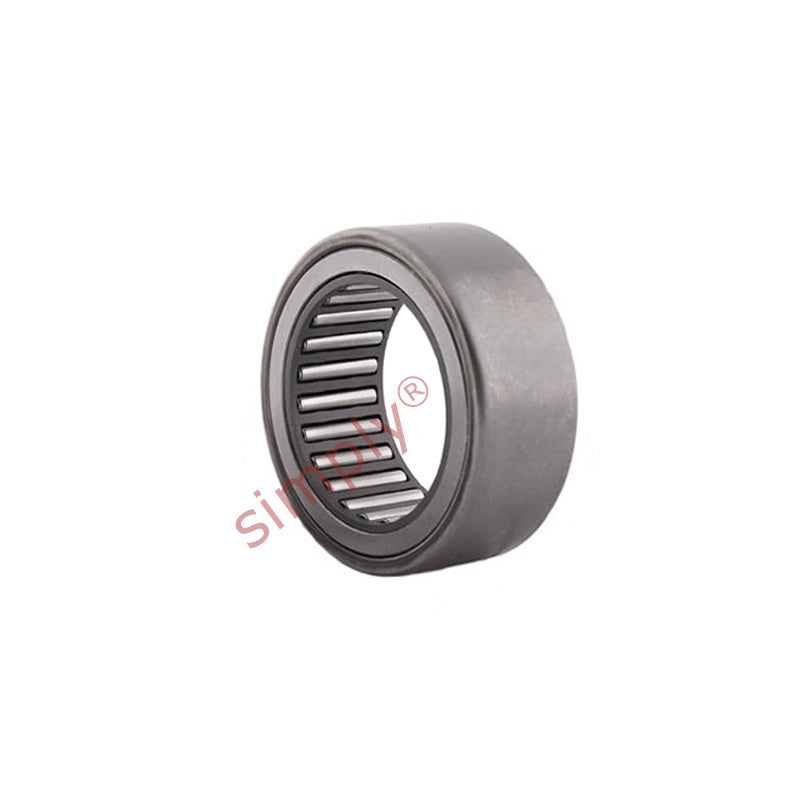

Major Brand RPNA45/62 Needle Roller Bearing Alignment Type Without Shaft Sleeve 45x62x20
Major Brand RPNA45/62 Needle Roller Bearing Alignment Type Without Shaft Sleeve 45x62x20
Regular price
$86.87
ex VAT
Regular price
Sale price
$86.87
ex VAT
In stock
Price Break
10+
$41.03
19+
$38.72
29+
$38.26
39+
$37.80
49+
$37.34
74+
$36.88
99+
$34.58
199+
$34.11
249+
$33.65
499+
$33.19
999+
$32.27
Description
Description
|
Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 62mm |
| B | 20mm |
| Dynamic load | 27500 N |
| Static load | 57000 N |
| Fatigue load limit Pu | 7100 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| D1 | 58mm |
| r min | 1mm |
| Da min | 57mm |
| Da max | 58mm |
| ra max | 1mm |
| Weight | 180 g |
