SKU: RPNA35/52-MB

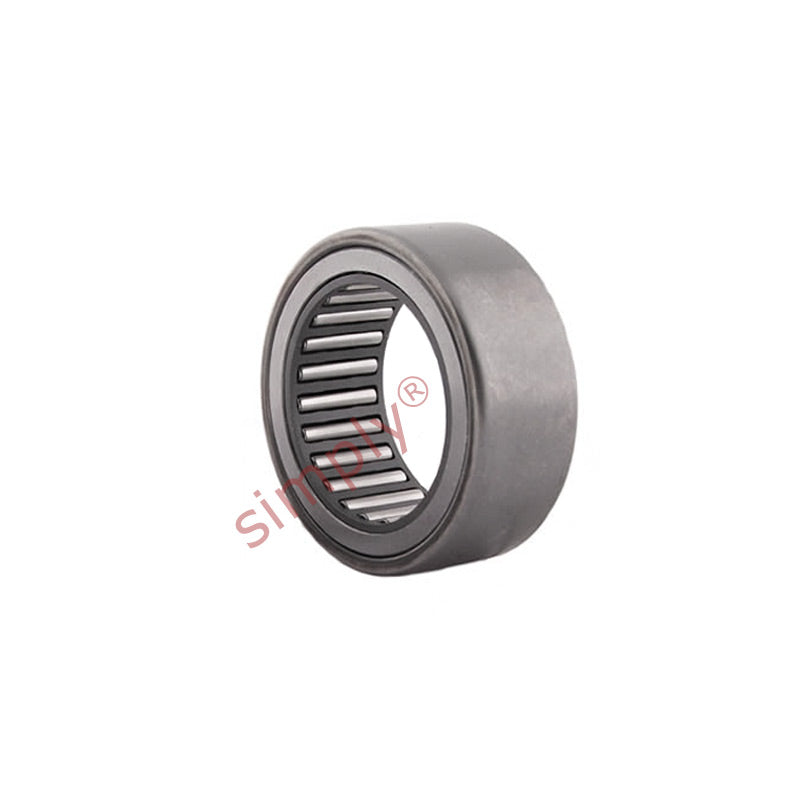

Major Brand RPNA35/52 Needle Roller Bearing Alignment Type Without Shaft Sleeve 35x52x20
Major Brand RPNA35/52 Needle Roller Bearing Alignment Type Without Shaft Sleeve 35x52x20
Regular price
$62.56
ex VAT
Regular price
Sale price
$62.56
ex VAT
In stock
Price Break
10+
$29.55
19+
$27.89
29+
$27.56
39+
$27.22
49+
$26.89
74+
$26.56
99+
$24.90
199+
$24.57
249+
$24.24
499+
$23.90
999+
$23.24
Description
Description
|
Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 52mm |
| B | 20mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Fatigue load limit Pu | 5600 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| D1 | 47.5mm |
| r min | 1mm |
| Da min | 46.5mm |
| Da max | 47.5mm |
| ra max | 1mm |
| Weight | 130 g |
