SKU: ROTEX14PB-ALIHUB-KTR

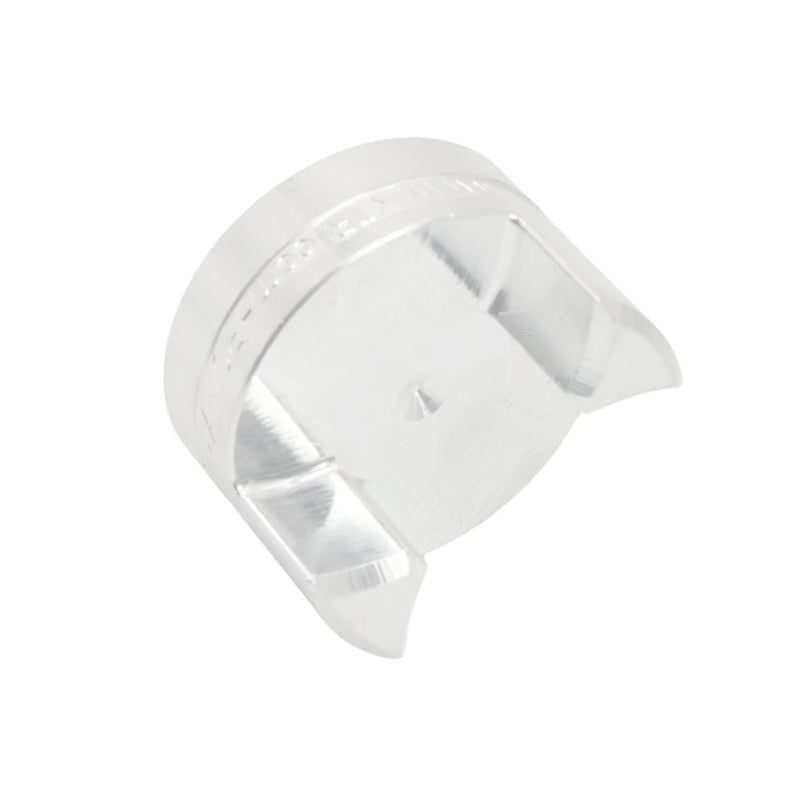

KTR Rotex 14 GS Al-D Hub Un Bored Max Bore 16mm
KTR Rotex 14 GS Al-D Hub Un Bored Max Bore 16mm
Regular price
$66.62
ex VAT
Regular price
Sale price
$66.62
ex VAT
In stock
Price Break
5+
$65.95
10+
$63.29
20+
$61.96
50+
$59.96
100+
$58.63
500+
$55.29
1000+
$46.63
Couldn't load pickup availability
Description
Description
Rotex 14 GS Al-D Hub: This coupling hub is a lightweight, die-cast aluminium coupling that is supplied unbored so you can machine it to your exact shaft size and specification. It is well suited to servo drives, positioning systems, encoders and other precision motion applications, where it provides reliable torque transmission with very good dynamic properties.
Benefits: Unbored, compact dimensions, easy assembly
- Brand / Quality:
- KTR - High Quality
- Material:
- Aluminium Diecast
- Style:
- Rotex 14
- Max Bore:
- 16mm
Technical
Technical

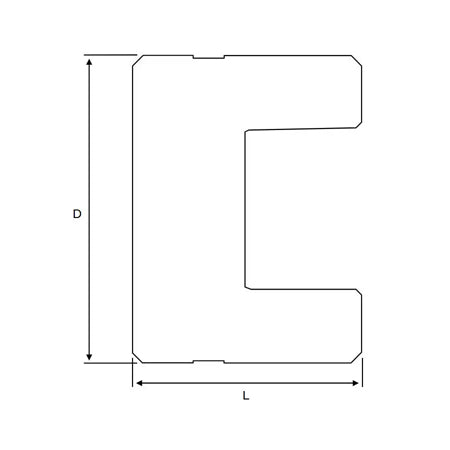

| D | 30mm |
|---|---|
| L | 22.5mm |
| Setscrew Size | M4*5.0 |
| Torque Adjustment | 1.5Nm |
| Max Bore | 16mm |
| Full Coupling Length | 35mm |
| Material | Aluminium Diecast |
