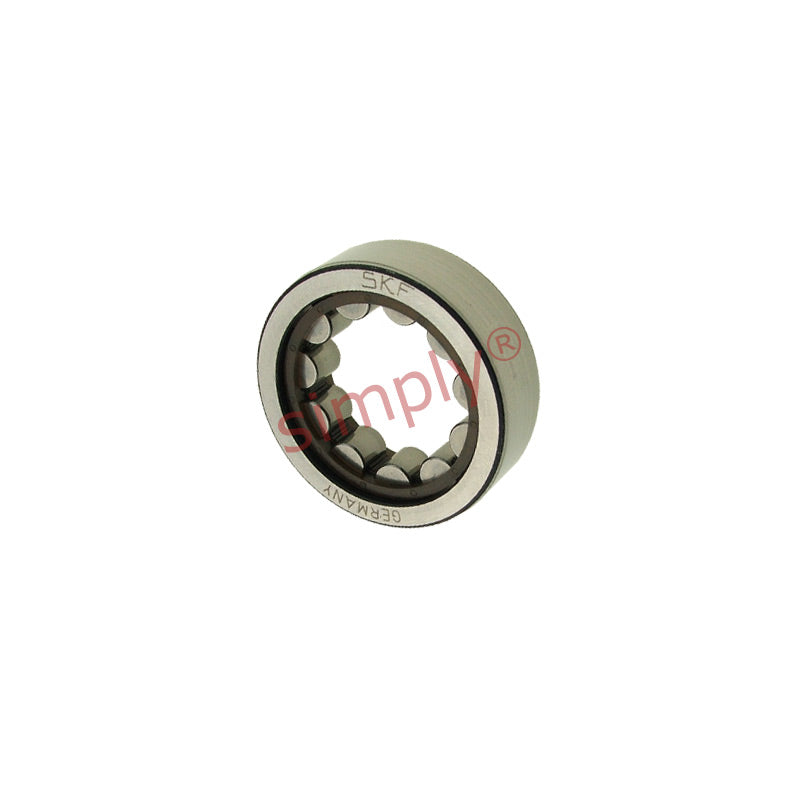

SKF RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
SKF RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
Regular price
$119.19
ex VAT
Regular price
Sale price
$119.19
ex VAT
In stock
Price Break
10+
$106.08
19+
$100.12
29+
$98.93
39+
$97.74
49+
$96.54
74+
$95.35
99+
$89.39
199+
$88.20
249+
$87.01
499+
$85.82
999+
$83.43
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 28.5mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
Technical
Technical
| d | 28.5mm |
|---|---|
| D | 52mm |
| C | 15mm |
| C1 | 3.5mm |
| Dynamic load | 20.5 kN |
| Static load | 10.4 kN |
| Fatigue load limit Pu | 2080 kN |
| Reference speed | 15000rpm |
| Limiting speed | 18000rpm |
| r1,2min | 1.1mm |
| Weight | 0.11kg |
