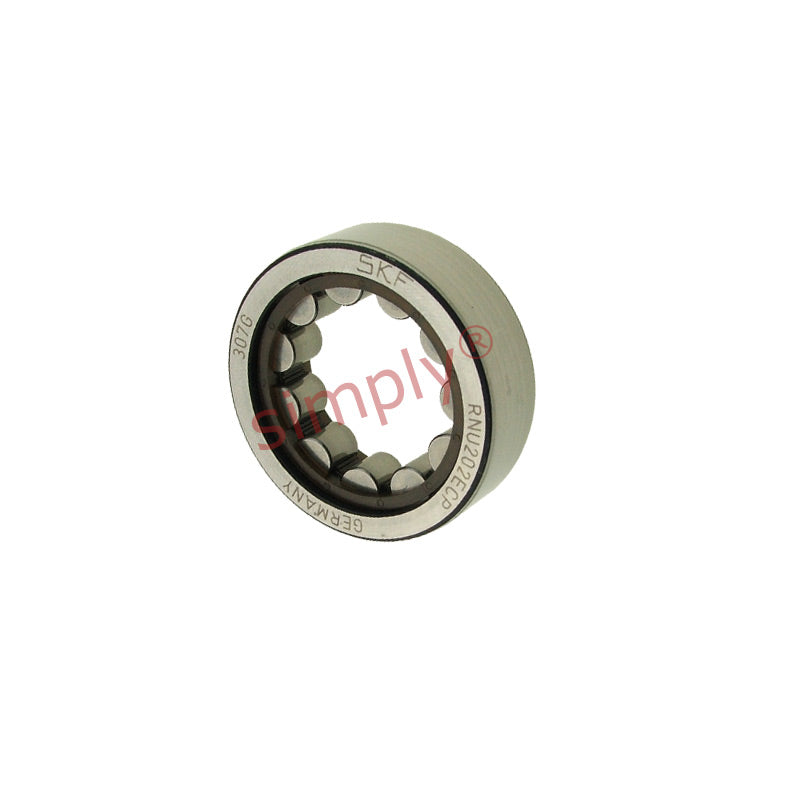

SKF RNU202ECP Single Row Cylindrical Roller Bearing 19.3x35x11mm
SKF RNU202ECP Single Row Cylindrical Roller Bearing 19.3x35x11mm
Regular price
$34.19
ex VAT
Regular price
Sale price
$34.19
ex VAT
In stock
Price Break
10+
$30.43
19+
$28.72
29+
$28.38
39+
$28.04
49+
$27.69
74+
$27.35
99+
$25.64
199+
$25.30
249+
$24.96
499+
$24.62
999+
$23.93
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.3mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
Technical
Technical
| d | 19.3mm |
|---|---|
| D | 35mm |
| C | 11mm |
| C1 | 2.5mm |
| Dynamic load | 12.5 kN |
| Static load | 10.2 kN |
| Fatigue load limit Pu | 1.22 kN |
| Reference speed | 22000rpm |
| Limiting speed | 26000rpm |
| r1,2min | 0.6mm |
| Weight | 0.037kg |
