SKU: RNA6902-EU

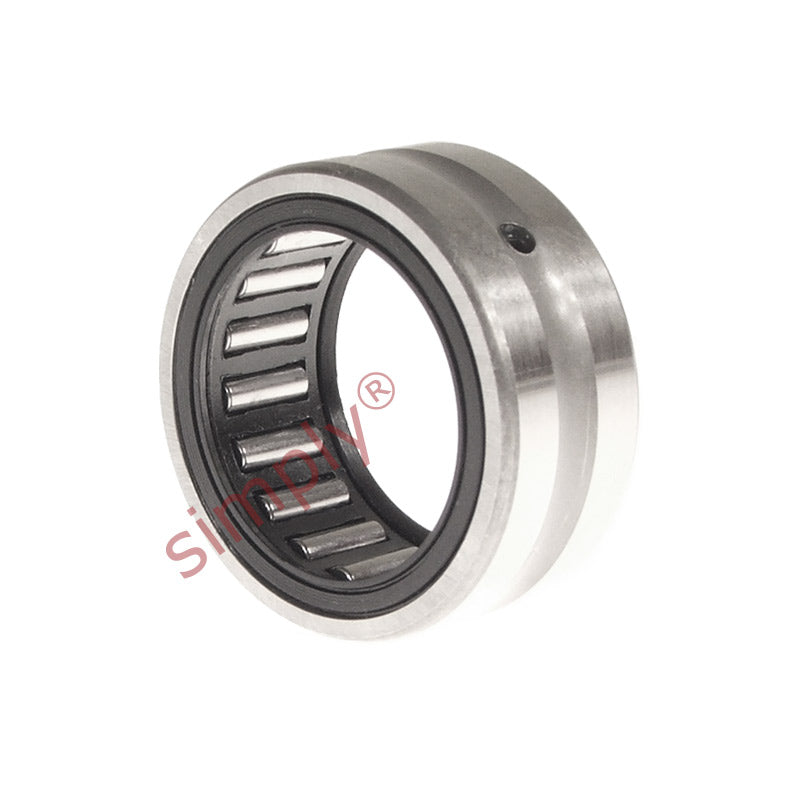

RNA6902 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 20x28x23mm
RNA6902 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 20x28x23mm
Regular price
$14.06
ex VAT
Regular price
Sale price
$14.06
ex VAT
In stock
Price Break
10+
$12.51
19+
$11.81
29+
$11.67
39+
$11.53
49+
$11.39
74+
$11.25
99+
$10.55
199+
$10.40
249+
$10.26
499+
$10.12
999+
$9.84
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 28mm
- Width:
- 23mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 28mm |
| C | 23mm |
| Dynamic load C | 17200 N |
| Static load Co | 27000 N |
| Fatigue load limit Pu | 3400 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| r1r2 | 0.3mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Seal | G/SD20x28x4 |
| Weight | 40 g |
