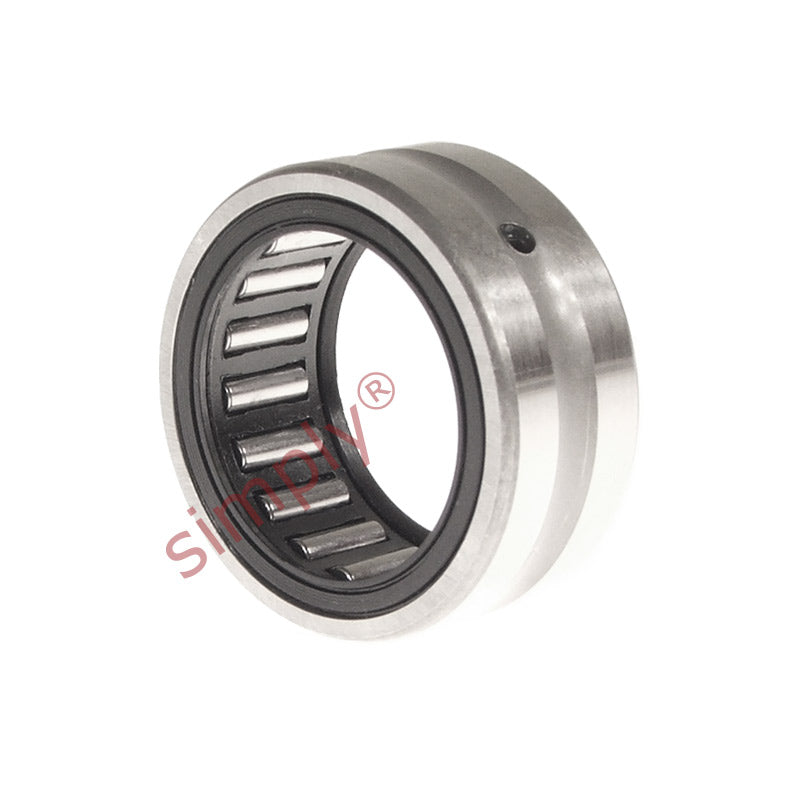

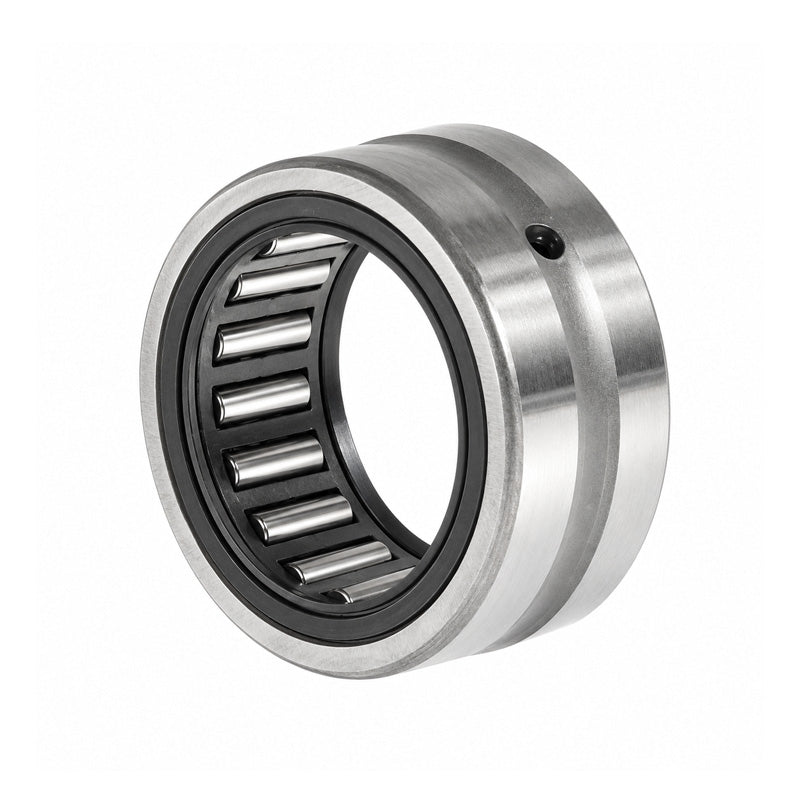

Major Brand RNA4903 Needle Roller Bearing With Flanges without Shaft Sleeve 22x30x13mm
Major Brand RNA4903 Needle Roller Bearing With Flanges without Shaft Sleeve 22x30x13mm
Regular price
$29.67
ex VAT
Regular price
Sale price
$29.67
ex VAT
In stock
Price Break
10+
$26.41
19+
$24.92
29+
$24.63
39+
$24.33
49+
$24.03
74+
$23.74
99+
$22.25
199+
$21.96
249+
$21.66
499+
$21.36
999+
$20.77
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 13mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 13mm |
| Dynamic load | 11400 N |
| Static load | 16300 N |
| Fatigue load limit Pu | 1960 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| r1r2 | 0.3mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Seal | G/SD22x30x4 |
| Weight | 22 g |
