SKU: RNA4901-EU

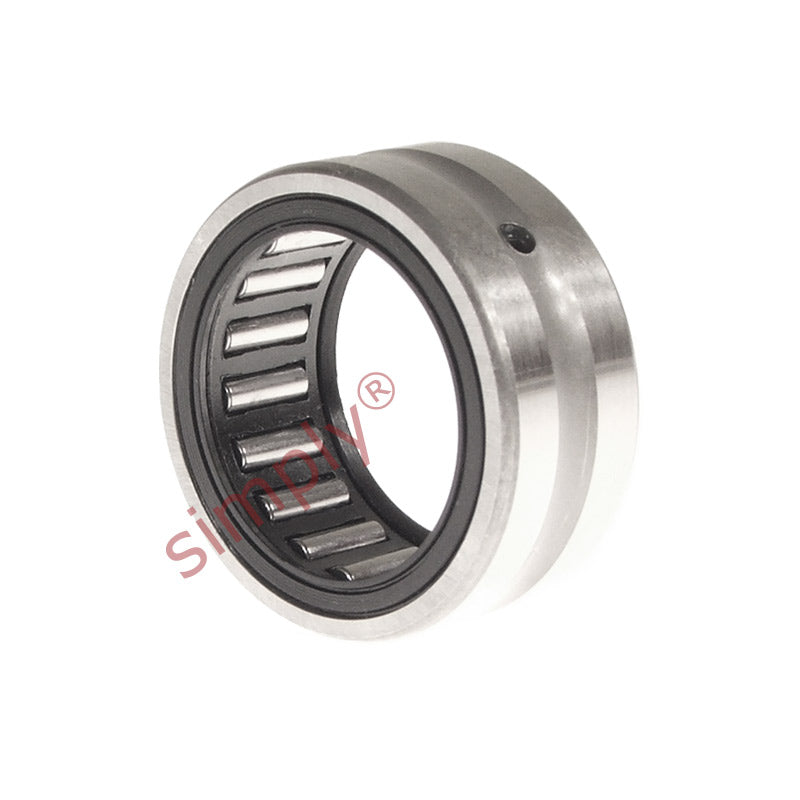

RNA4901 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 16x24x13mm
RNA4901 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 16x24x13mm
Regular price
$20.82
ex VAT
Regular price
Sale price
$20.82
ex VAT
In stock
Price Break
10+
$18.53
19+
$17.49
29+
$17.28
39+
$17.07
49+
$16.86
74+
$16.66
99+
$15.62
199+
$15.41
249+
$15.20
499+
$14.99
999+
$14.57
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 13mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 24mm |
| C | 13mm |
| Dynamic load C | 9900 N |
| Static load Co | 12200 N |
| Fatigue load limit Pu | 1460 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| r1r2 | 0.3mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Seal | G/SD16x24x3 |
| Weight | 17 g |
