SKU: RNA4864-EU

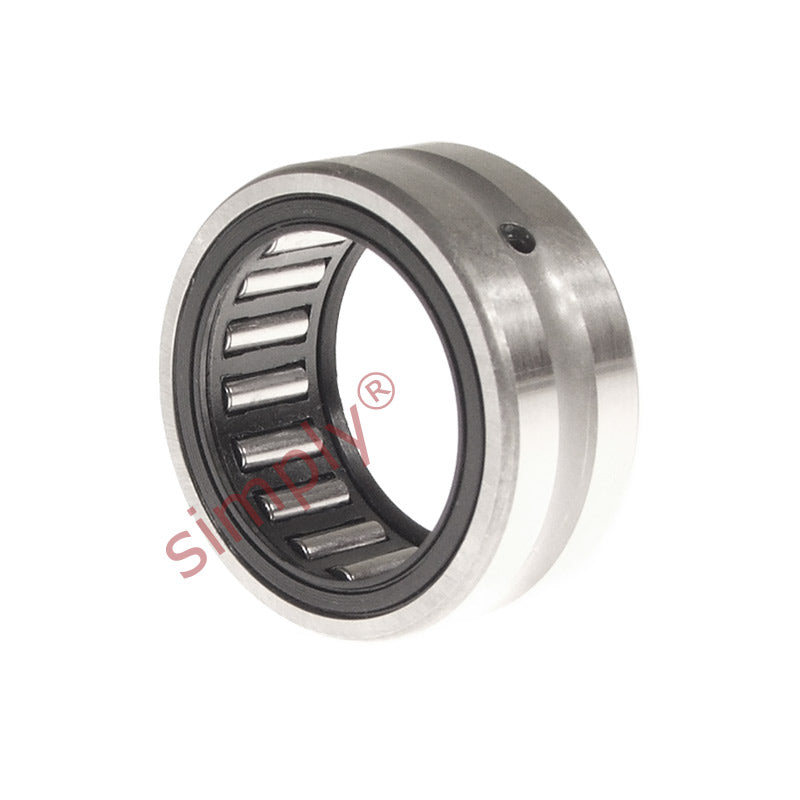

RNA4864 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 350x400x80mm
RNA4864 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 350x400x80mm
Regular price
$4,187.34
ex VAT
Regular price
Sale price
$4,187.34
ex VAT
In stock
Price Break
10+
$3,726.73
19+
$3,517.37
29+
$3,475.49
39+
$3,433.62
49+
$3,391.75
74+
$3,349.87
99+
$3,140.51
199+
$3,098.63
249+
$3,056.76
499+
$3,014.88
999+
$2,931.14
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 350mm
- Outside Diameter:
- 400mm
- Width:
- 80mm
Technical
Technical
| Fw | 350mm |
|---|---|
| D | 400mm |
| C | 80mm |
| Dynamic load C | 605000 N |
| Static load Co | 1900000 N |
| Fatigue load limit Pu | 176000 N |
| Speed in grease | 750 rpm |
| Speed in oil | 1100 rpm |
| r1r2 | 2.1mm |
| Da max | 389mm |
| ra max | 2mm |
| Seal | CR350x400x17HDS1R |
| Weight | 13500 g |
