SKU: RNA4822-EU

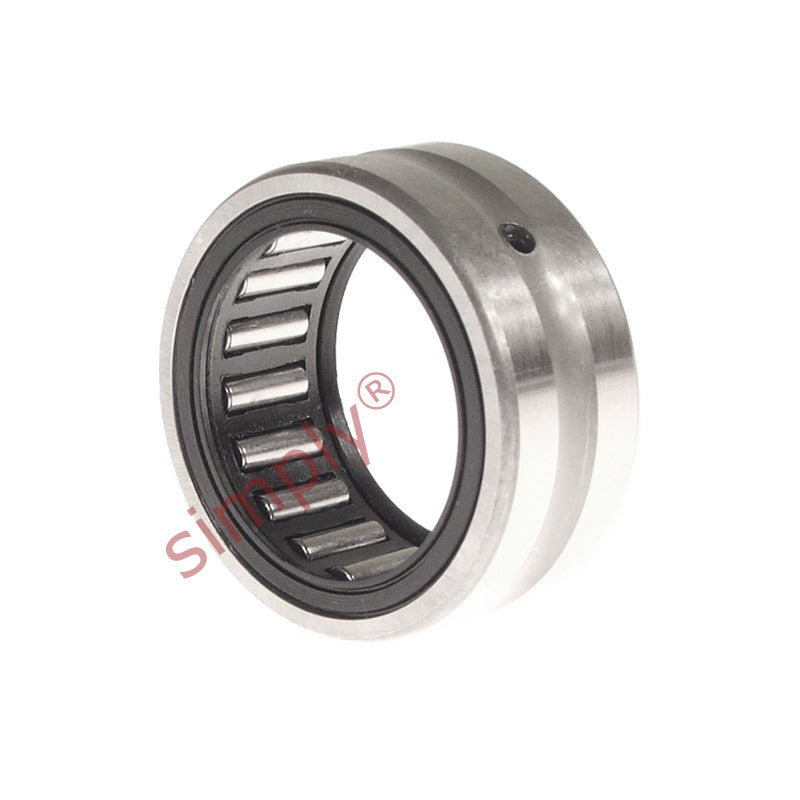

RNA4822 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 120x140x30mm
RNA4822 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 120x140x30mm
Regular price
$259.55
ex VAT
Regular price
Sale price
$259.55
ex VAT
In stock
Price Break
10+
$231.00
19+
$218.02
29+
$215.43
39+
$212.83
49+
$210.24
74+
$207.64
99+
$194.66
199+
$192.07
249+
$189.47
499+
$186.88
999+
$181.69
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 140mm
- Width:
- 30mm
Technical
Technical
| Fw | 120mm |
|---|---|
| D | 140mm |
| C | 30mm |
| Dynamic load C | 93500 N |
| Static load Co | 232000 N |
| Fatigue load limit Pu | 27500 N |
| Speed in grease | 2200 rpm |
| Speed in oil | 3400 rpm |
| r1r2 | 1.1mm |
| Da max | 135mm |
| ra max | 1mm |
| Seal | CR120x140x13HMS4R |
| Weight | 670 g |
