SKU: RNA2207.2RS-MB

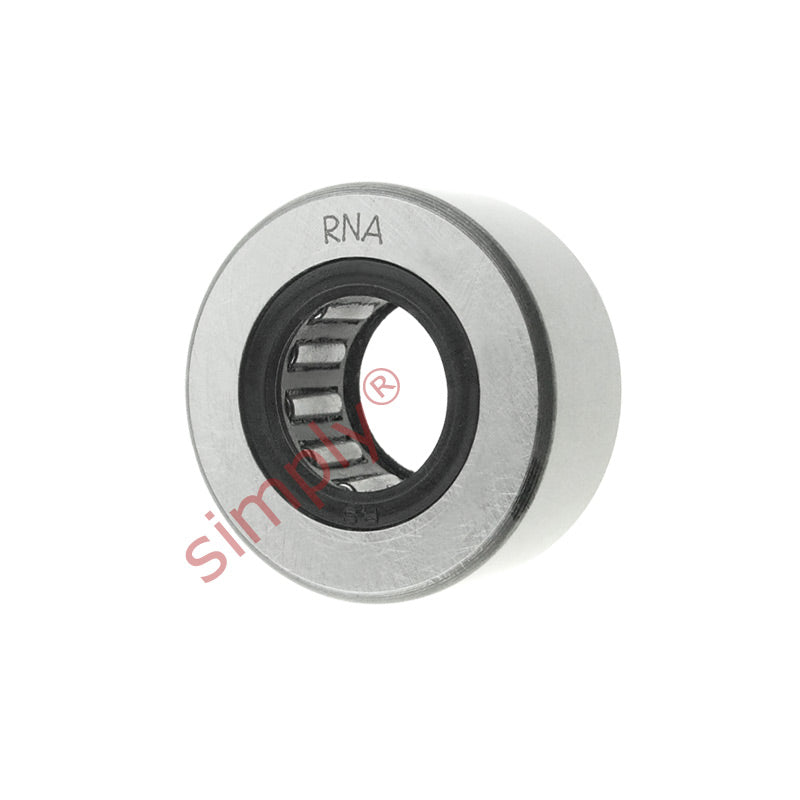

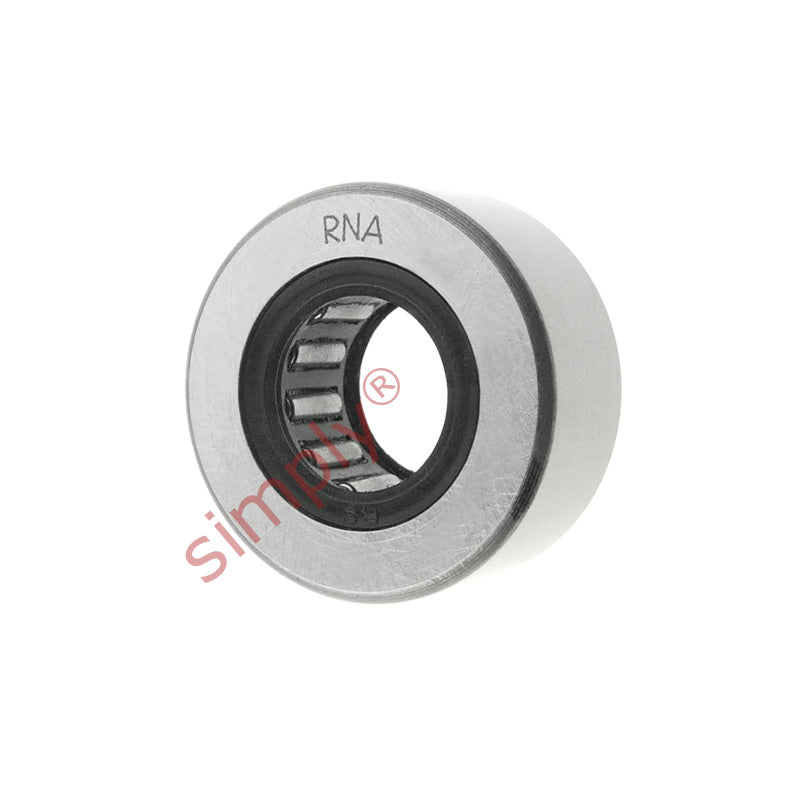

Major Brand RNA22072RS Support Roller Without Axial Guidance Without Inner Sleeve 42x72x22.7mm
Major Brand RNA22072RS Support Roller Without Axial Guidance Without Inner Sleeve 42x72x22.7mm
Regular price
$69.14
ex VAT
Regular price
Sale price
$69.14
ex VAT
In stock
Price Break
10+
$32.65
19+
$30.82
29+
$30.45
39+
$30.09
49+
$29.72
74+
$29.35
99+
$27.52
199+
$27.15
249+
$26.78
499+
$26.42
999+
$25.68
Description
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 42mm
- Outside Diameter:
- 72mm
- Width:
- 22.7mm
Technical
Technical
| Fw | 42mm |
|---|---|
| D | 72mm |
| C | 22.7mm |
| D1 | 50mm |
| r min | 1.1mm |
| Speed rating | 1100 rpm |
| Dynamic load | 22000 N |
| Static load | 34000 N |
| Fatigue load limit Pu | 4300 N |
| Min radial force dynamic load | 39000 N |
| Max radial force dynamic load | 56000 N |
| Weight | 430 g |
