SKU: RM35FF-MB

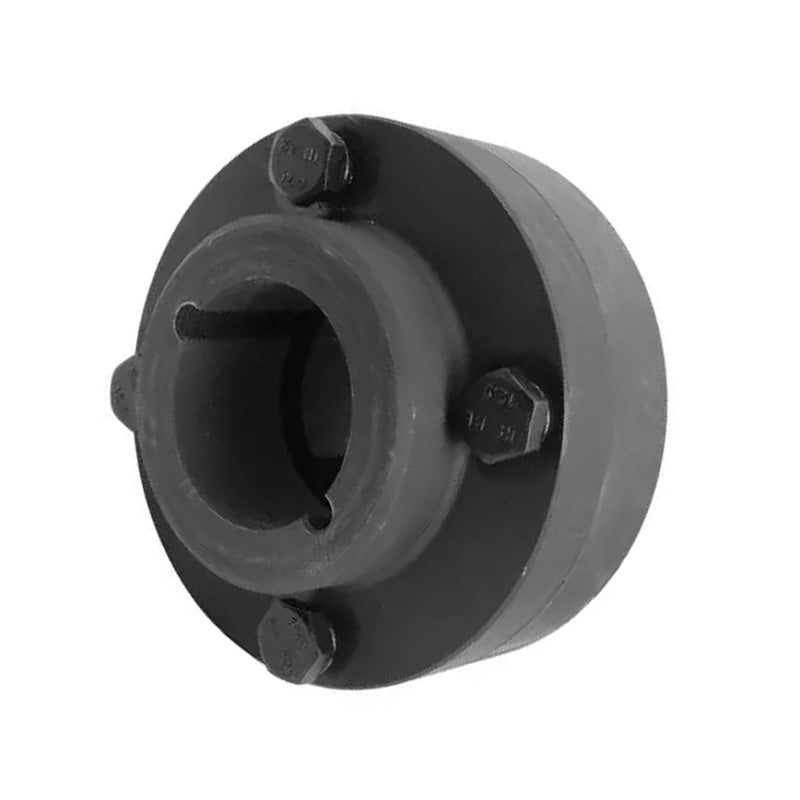

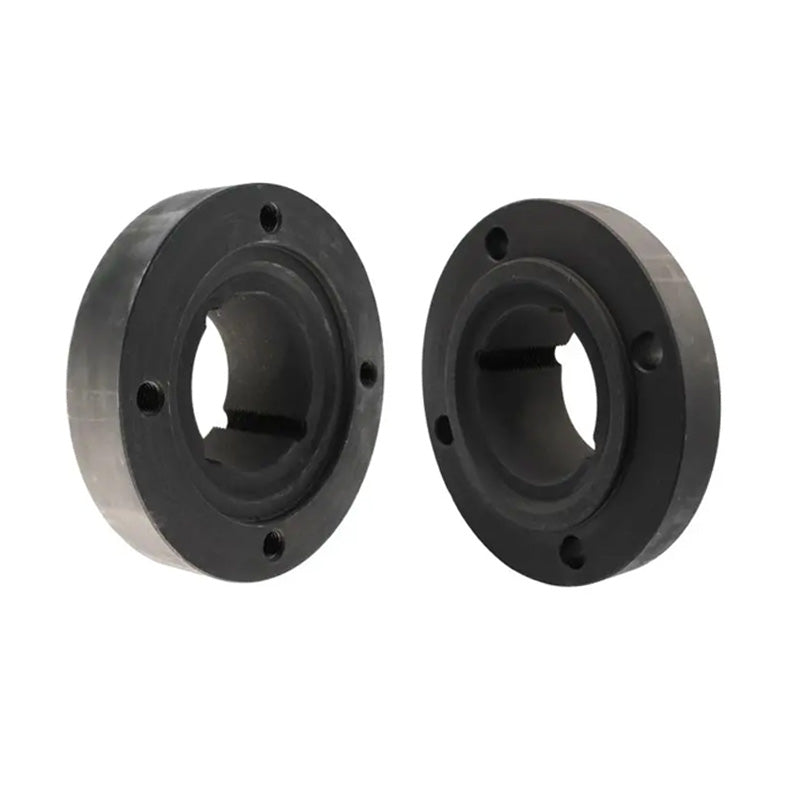

Major Brand RM35FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 100mm / 4 inch
Major Brand RM35FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 100mm / 4 inch
Regular price
$671.58
ex VAT
Regular price
Sale price
$671.58
ex VAT
Equivalent to: RM35FF-3525
In stock
Price Break
10+
$597.71
19+
$564.13
29+
$557.41
39+
$550.70
49+
$543.98
74+
$537.26
99+
$503.69
199+
$496.97
249+
$490.25
499+
$483.54
999+
$470.11
Couldn't load pickup availability
Description
Description
Major Branded Rigid Shaft Coupling with Inner Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (FF).
Equivalent: RM35FF-3525
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 100mm or 4 inch
Technical
Technical
| Bush | 3525<a href="advanced_search_result.php?keywords=taper+lock+bush+3525"> [Click Here]</a> |
|---|---|
| Max Bore Size | 100mm |
| Inch | 4 inch |
| A | 248mm |
| C | 75mm |
| D | 178mm |
| E | 65mm |
| F Nominal | 178mm |
| G Nominal | 213mm |
| H ♣ | 7mm |
| J ♠ | 67mm |
| L | 137mm |
| Mass ♥ | 34kg |
