SKU: RCRA20/46-FA106-INA

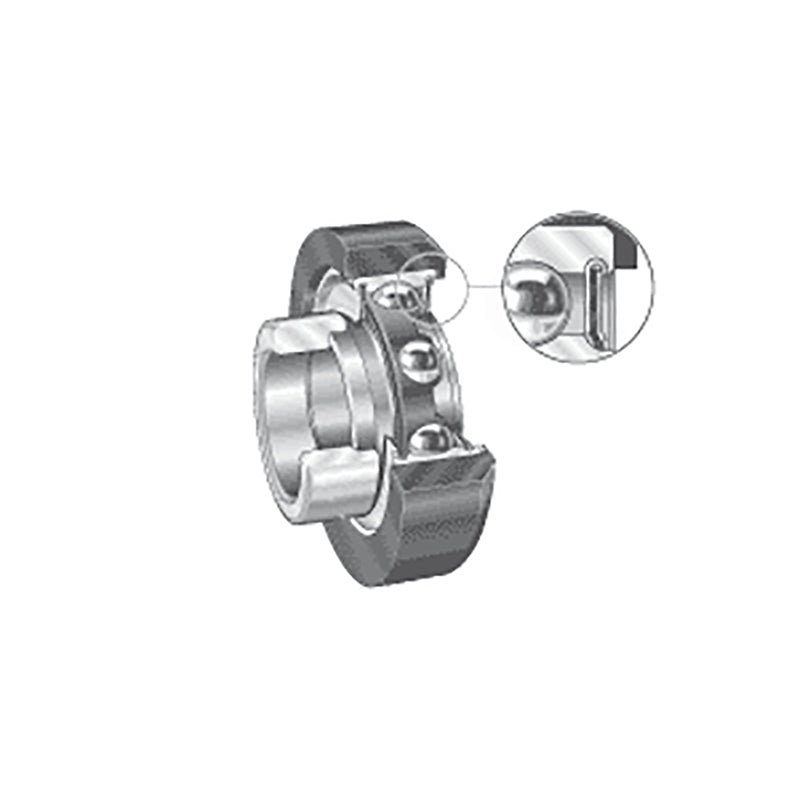

INA RCRA20/46XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x46x24.5mm
INA RCRA20/46XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x46x24.5mm
Regular price
$45.11
ex VAT
Regular price
Sale price
$45.11
ex VAT
In stock
Price Break
10+
$40.15
19+
$37.89
29+
$37.44
39+
$36.99
49+
$36.54
74+
$36.09
99+
$33.83
199+
$33.38
249+
$32.93
499+
$32.48
999+
$31.58
Couldn't load pickup availability
Description
Description
|
INA RCRA and RCRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 46mm
- Width:
- 24.5mm
- Type:
- Parallel Outer
Technical
Technical
| d | 20mm |
|---|---|
| D | 46mm |
| B1 | 24.5mm |
| C | 18.3mm |
| C2 | 16mm |
| D2 | 35mm |
| d3 max | 30mm |
| P | 10mm |
| S1 | 18.6mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 900 N |
| Dynamic load Cr | 9400 N |
| Static load C0r | 5000 N |
| Designation of rubber interliner | RCR42/46 |
| Designation of bearing | RALE20-NPP-FA106 |
| Weight | 0.14 kg |
