SKU: RAXZ510-NADELLA

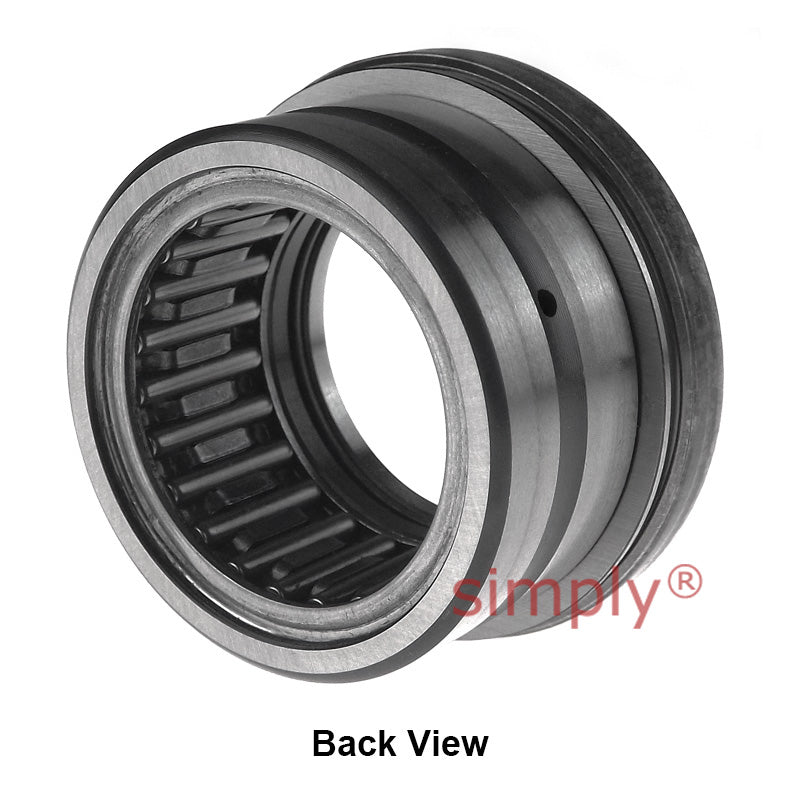

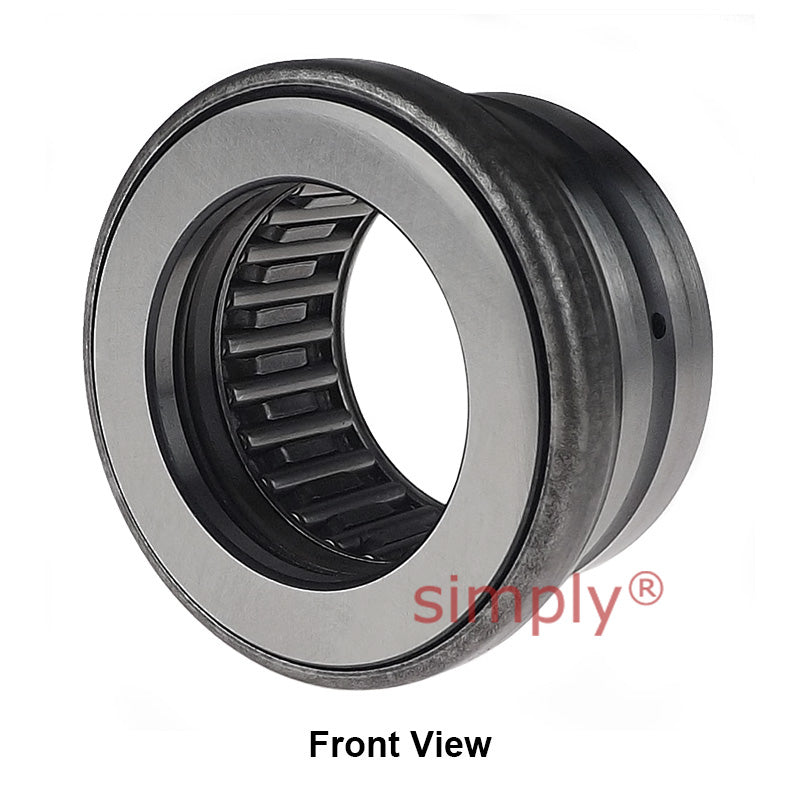

Nadella RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
Nadella RAXZ 510 Combined Bearing with Incorporated Thrust Plate 10x19x21.5mm Allow 2-3 Days
Out of stock
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 21.5mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 19mm |
| C | 21.5mm |
| da | 10mm |
| Da | 22.4mm |
| C1 | 7.5mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 5.9 kN |
| Radial static load | 7.2 kN |
| Axial dynamic load | 8.2 kN |
| Axial static load | 17.9 kN |
| Speed rating | 15500 rpm |
| Weight | 0.031 kg |
