SKU: RAX535-MB

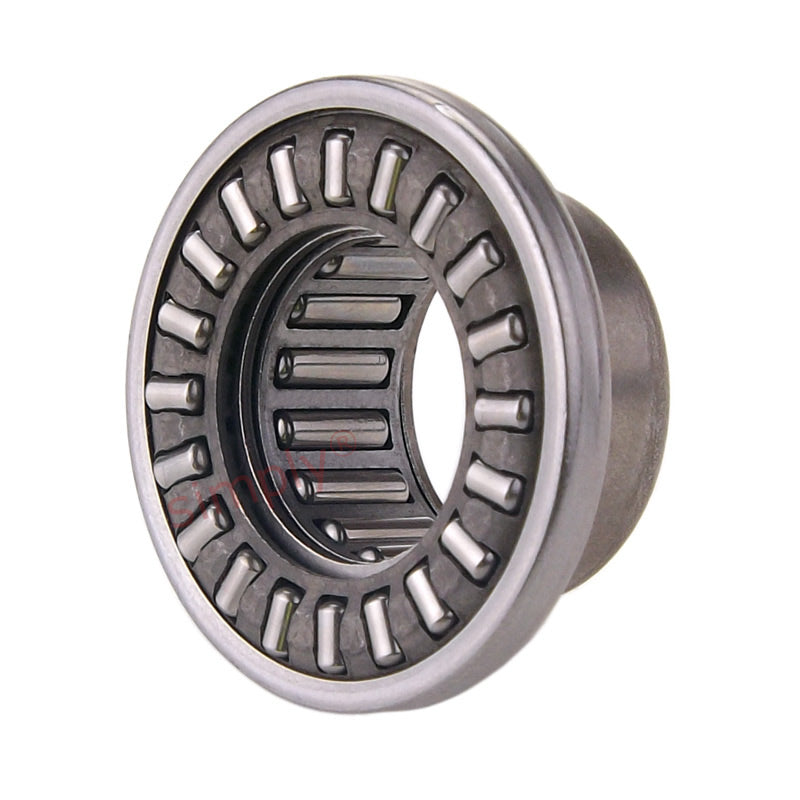

Major Brand RAX 535 Needle Combined Bearing with Needle Thrust Cage 35x47x27mm Allow 2-3 Days
Major Brand RAX 535 Needle Combined Bearing with Needle Thrust Cage 35x47x27mm Allow 2-3 Days
Regular price
$654.10
ex VAT
Regular price
Sale price
$654.10
ex VAT
In stock
Price Break
10+
$308.92
19+
$291.56
29+
$288.09
39+
$284.62
49+
$281.15
74+
$277.68
99+
$260.32
199+
$256.85
249+
$253.38
499+
$249.91
999+
$242.97
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 27mm
- Width:
- 47mm
Technical
Technical
| Fw | 35mm |
|---|---|
| C | 27mm |
| D | 47mm |
| Da | 53.4mm |
| Eb | 37.8mm |
| Ea | 47.8mm |
| C1 | 9mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 22.1 kN |
| Radial static load | 40.8 kN |
| Axial dynamic load | 33.8 kN |
| Axial static load | 94 kN |
| Speed rating | 5500 rpm |
| Inner ring | JR 30x35x20 kN |
| Weight | 0.146 kg |
