SKU: RAX410-NADELLA

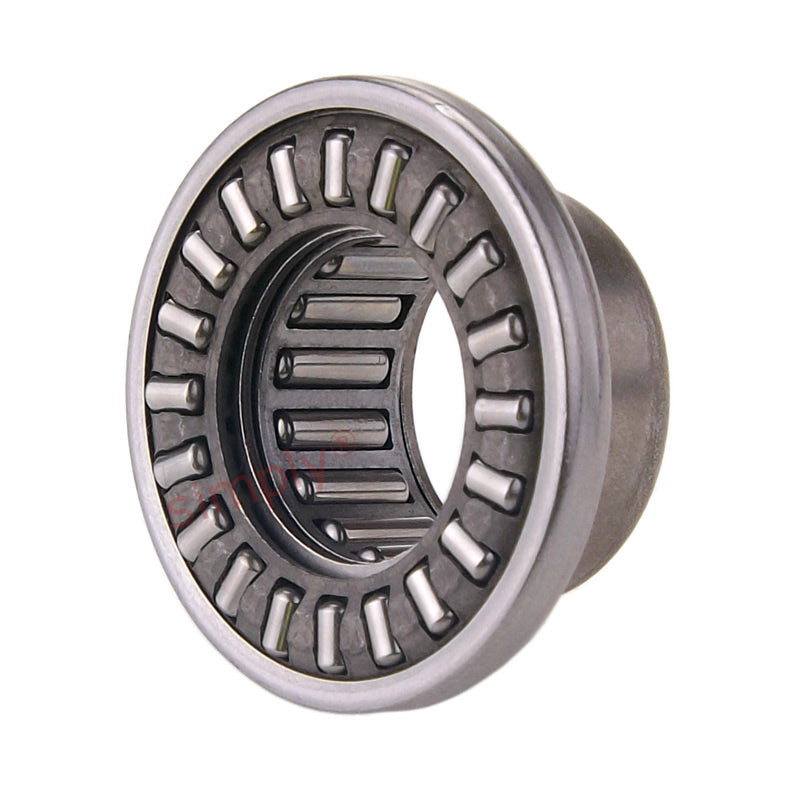

Nadella RAX 410 Needle Combined Bearing with Needle Thrust Cage 10x19x19mm Allow 2-3 Days
Nadella RAX 410 Needle Combined Bearing with Needle Thrust Cage 10x19x19mm Allow 2-3 Days
Regular price
$290.91
ex VAT
Regular price
Sale price
$290.91
ex VAT
In stock
Price Break
5+
$288.00
10+
$276.36
20+
$270.55
50+
$261.82
100+
$256.00
500+
$241.46
1000+
$203.64
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 19mm
Technical
Technical
| Fw | 10mm |
|---|---|
| C | 19mm |
| D | 19mm |
| Da | 22mm |
| Eb | 12mm |
| Ea | 18.6mm |
| C1 | 5mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 5.9 kN |
| Radial static load | 7.16 kN |
| Axial dynamic load | 5 kN |
| Axial static load | 10.9 kN |
| Speed rating | 15500 rpm |
| Inner ring | JR 7x10x16 kN |
| Weight | 0.025 kg |
