SKU: RA104-NPP-INA

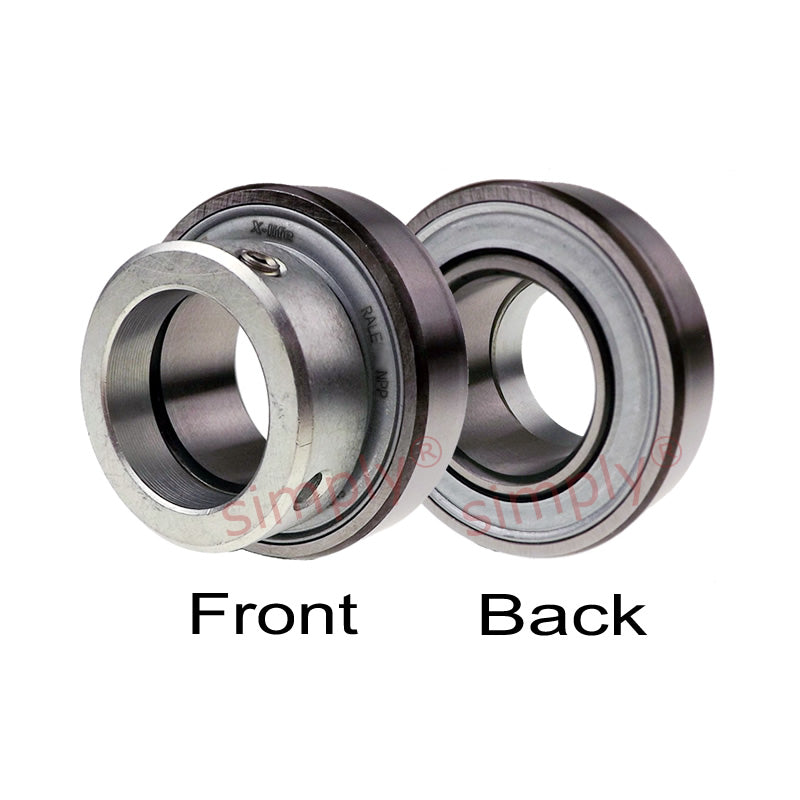

INA RA104NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 31.75x72x39mm
INA RA104NPP Imperial Parallel Outer Bearing Insert with P Seals Eccentric Collar 31.75x72x39mm
Regular price
$62.34
ex VAT
Regular price
Sale price
$62.34
ex VAT
In stock
Price Break
3+
$29.44
5+
$27.79
10+
$27.46
15+
$27.13
20+
$26.79
30+
$26.46
40+
$24.81
50+
$24.48
60+
$24.15
75+
$23.82
100+
$23.16
Description
Description
|
INA RA..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Width:
- 39mm
Technical
Technical
| d | 31.75mm |
|---|---|
| d | 1-1/4 inch |
| D | 72mm |
| B1 | 39mm |
| B | 25.4mm |
| C | 19mm |
| d2 | 44.6mm |
| d3 max | 51mm |
| S | 9.5mm |
| W | 3/16 inch |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.48 kg |
