SKU: QRFF-12-HQ12-MB

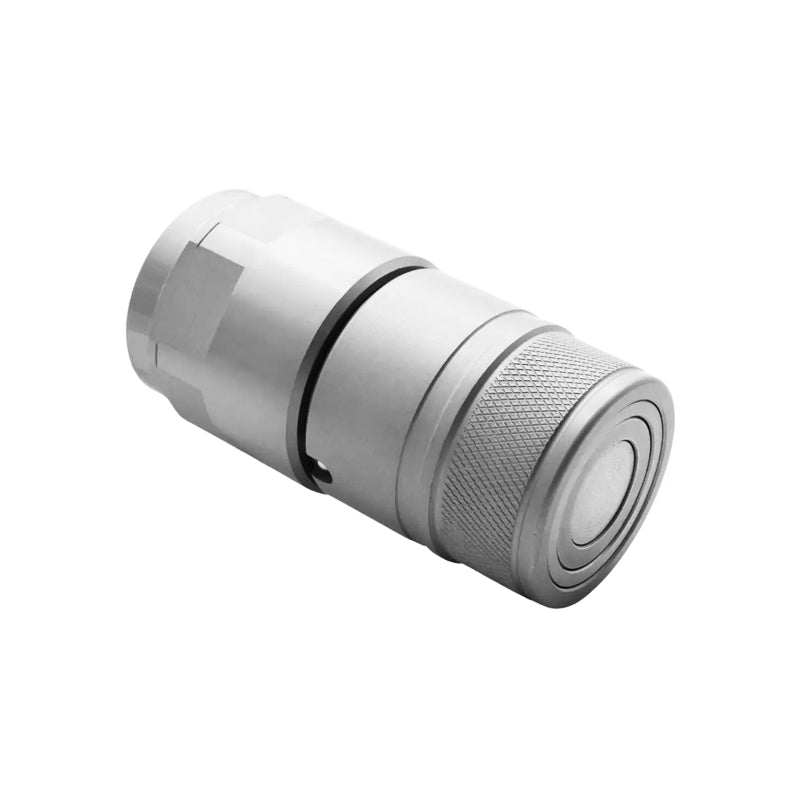

3/4 inch BSP Female Flat Face Quick Release Coupling - Allow 2-3 Days
3/4 inch BSP Female Flat Face Quick Release Coupling - Allow 2-3 Days
Regular price
$64.09
ex VAT
Regular price
Sale price
$64.09
ex VAT
In stock
Price Break
10+
$57.04
19+
$53.84
29+
$53.19
39+
$52.55
49+
$51.91
74+
$51.27
99+
$48.07
199+
$47.43
249+
$46.79
499+
$46.14
999+
$44.86
Couldn't load pickup availability
Description
Description
BSP Female Flat Face Quick Release Coupling: These couplings offer leak-free performance in high-pressure and hammer circuit applications. Made from durable carbon steel with zinc-nickel plating, these couplings resist corrosion and ensure longevity. Their flat-face design minimises air and contaminant inclusion while preventing fluid loss during disconnection. A safety locking sleeve prevents accidental disconnection and they also allow bidirectional flow, making them ideal for industrial, construction, and agricultural uses.
Benefits: Durable, safe and convenient, leak-free performance.
- Brand / Quality:
- Simply Quick Release Couplings - High Quality
- Thread Size:
- 3/4 inch BSP
- Length:
- 83.8mm
- Max Working Pressure:
- 350 bar
Technical
Technical

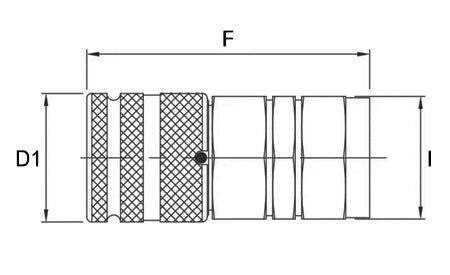

| Thread Size | 3/4 inch |
|---|---|
| Body Size (D1) | 38mm |
| Total Length (F) | 83.8mm |
| Nut Size (I) | 36mm |
| Maximum Working Pressure | 350 bar |
| Coupled Burst Pressure | 1400 bar |
| Female Burst Pressure | 1000 bar |
| Rated Flow | 45 lpm |
| Material | Zinc-Nickel Coated Steel |
| Weight | 0.493 kg |
