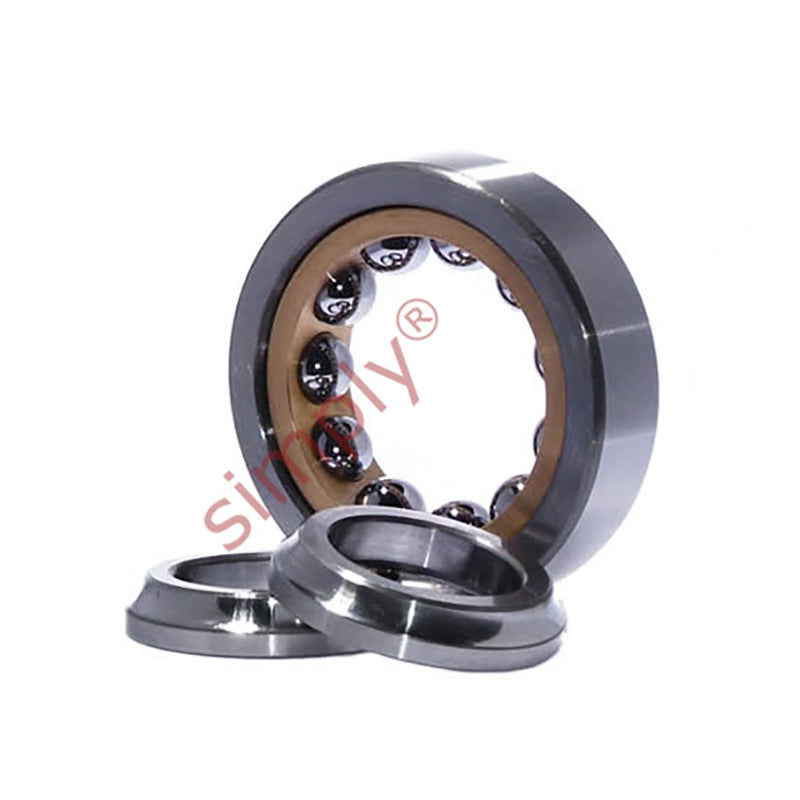

Premier Budget Brass Caged Imperial QJM2 Four Point Contact Ball Bearing 2x4-1/2x1-1/16 inch
Premier Budget Brass Caged Imperial QJM2 Four Point Contact Ball Bearing 2x4-1/2x1-1/16 inch
Regular price
$790.16
ex VAT
Regular price
Sale price
$790.16
ex VAT
Equivalent to: DMJT2 M15CDS QJM2M
In stock
Price Break
10+
$373.17
19+
$352.21
29+
$348.02
39+
$343.82
49+
$339.63
74+
$335.44
99+
$314.47
199+
$310.28
249+
$306.09
499+
$301.89
999+
$293.51
Description
Description
Imperial Four Point Contact Ball Bearings: Are radial single-row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double-row ball bearing of equivalent bore size.
Benefits: Supports axial loads in both directions, ease of mounting, brass caged.
- Brand / Quality:
- Premier Budget - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Width:
- 26.99mm = 1.063 (1-1/16) inch
Technical
Technical
| Inside Diameter d | 2 inch |
|---|---|
| Outside Diameter D | 4-1/2 inch |
| Width B | 1-1/16 inch |
| Dynamic load C | 53600N |
| Static load Co | 47100N |
| Weight | 1.47 kg |
