SKU: PSMF506050A51-SKF

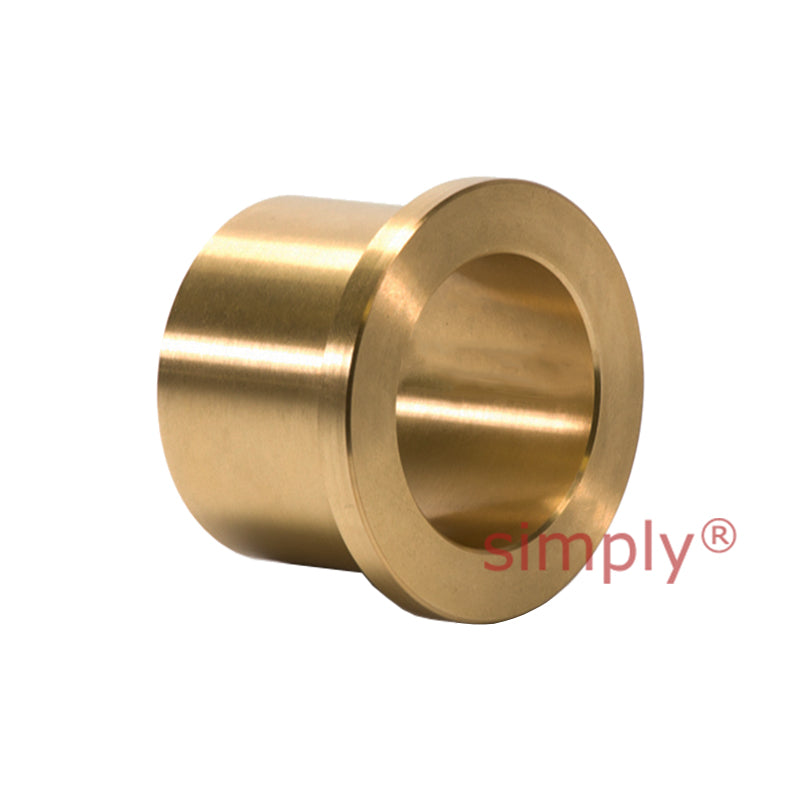

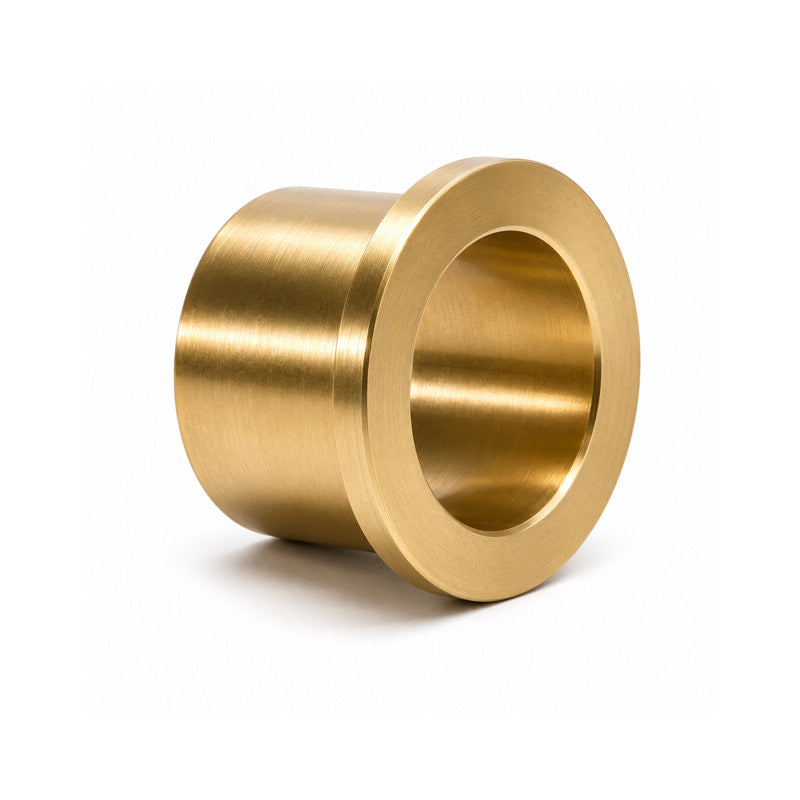

SKF PSMF506050A51 Imperial Flanged Sintered Bronze Bush 1.969x2.362x1.969 inch
SKF PSMF506050A51 Imperial Flanged Sintered Bronze Bush 1.969x2.362x1.969 inch
Regular price
$130.39
ex VAT
Regular price
Sale price
$130.39
ex VAT
In stock
Price Break
9+
$61.58
19+
$58.12
29+
$57.43
39+
$56.74
49+
$56.05
69+
$55.35
99+
$51.90
199+
$51.20
249+
$50.51
499+
$49.82
999+
$48.44
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm = 1.969 inch
- Outside Diameter:
- 60mm = 2.362 inch
- Length:
- 50mm = 1.969 inch
Technical
Technical
| d | 1.969 inch |
|---|---|
| D | 2.362 inch |
| B | 1.969 inch |
| D1 | 2.76 inch |
| B1 | 0.24 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.441 lbs |
