SKU: POS25.EU

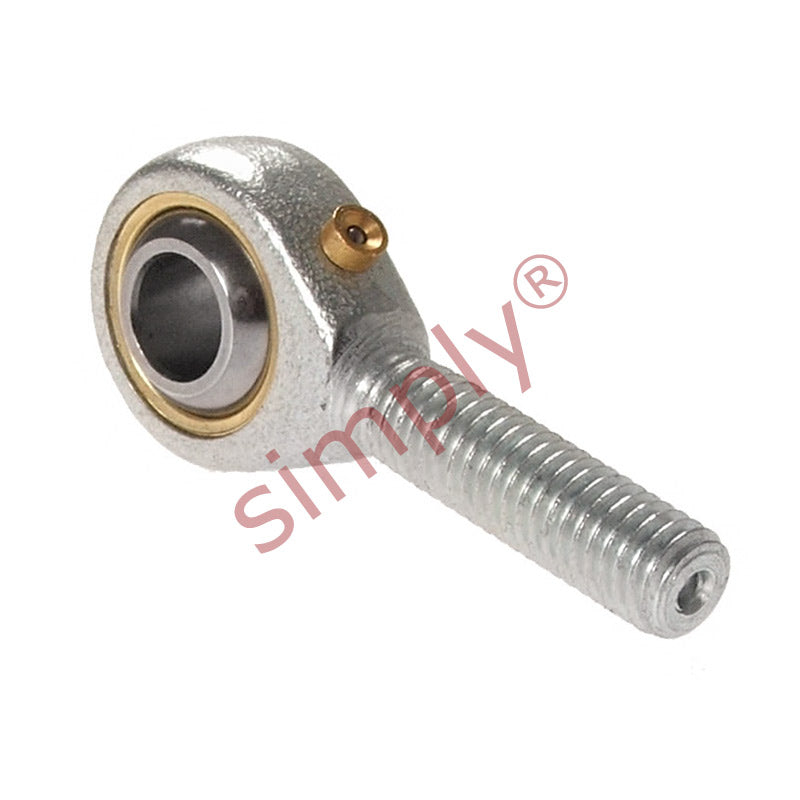

Budget POS25 Right Hand Steel / Bronze Lined Plain Male Rod End 25mm Bore M24x2 Thread
Budget POS25 Right Hand Steel / Bronze Lined Plain Male Rod End 25mm Bore M24x2 Thread
Regular price
$52.67
ex VAT
Regular price
Sale price
$52.67
ex VAT
Equivalent to: GAKFR25PB SAKAC25M SM25 MB-M25
In stock
Price Break
10+
$24.88
19+
$23.48
29+
$23.20
39+
$22.92
49+
$22.64
74+
$22.36
99+
$20.96
199+
$20.68
249+
$20.40
499+
$20.12
999+
$19.57
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR25PB SAKAC25M SM25 MB-M25
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M24x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
- Material:
- Bronze Lined
Technical
Technical
| d | 25mm |
|---|---|
| B | 31mm |
| r1 | 0.6mm |
| C1 | 22mm |
| d1 max | 29.5mm |
| d2 | 60mm |
| d3 | M24x2 |
| h | 94mm |
| l1 | 57mm |
| l2 | 124mm |
| Ball diameter | 1-11/16 inch |
| Dynamic load Cr | 47.1 kN |
| Static load Cor | 74.1 kN |
| Max angle α | 15 |
| Weight | 0.65 kg |
