SKU: POS16/F1.EU

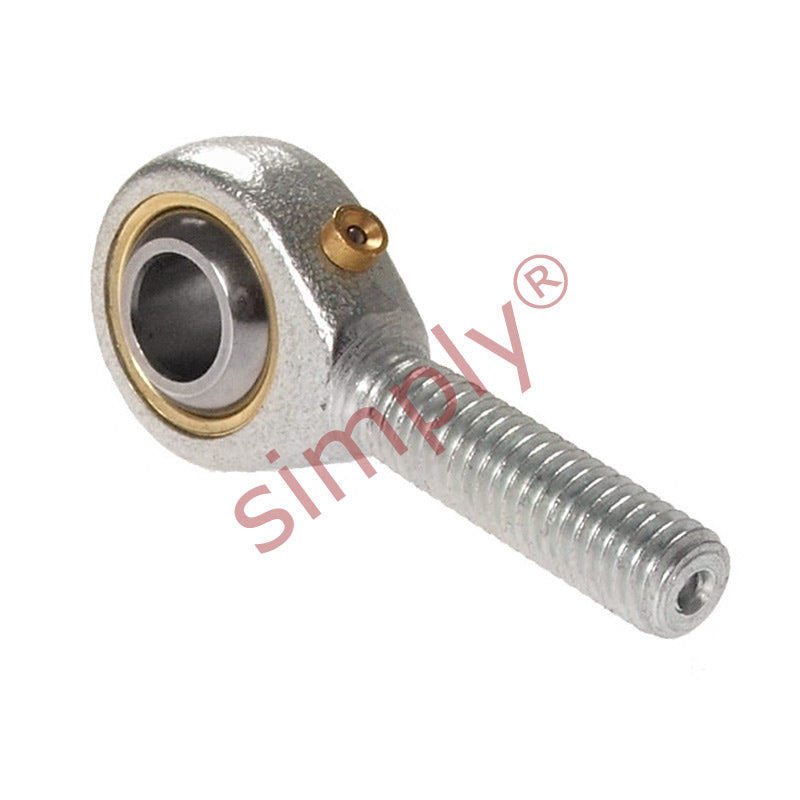

Budget POS16/F1 Right Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x1.5 Thread
Budget POS16/F1 Right Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x1.5 Thread
Regular price
$15.79
ex VAT
Regular price
Sale price
$15.79
ex VAT
In stock
Price Break
10+
$7.46
19+
$7.04
29+
$6.96
39+
$6.87
49+
$6.79
74+
$6.70
99+
$6.29
199+
$6.20
249+
$6.12
499+
$6.03
999+
$5.87
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- Bronze Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x1.5 |
| h | 66mm |
| l1 | 40mm |
| l2 | 85mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4 kN |
| Static load Cor | 25.9 kN |
| Max angle α | 15 |
| Weight | 0.185 kg |
