SKU: POS12-PTFE

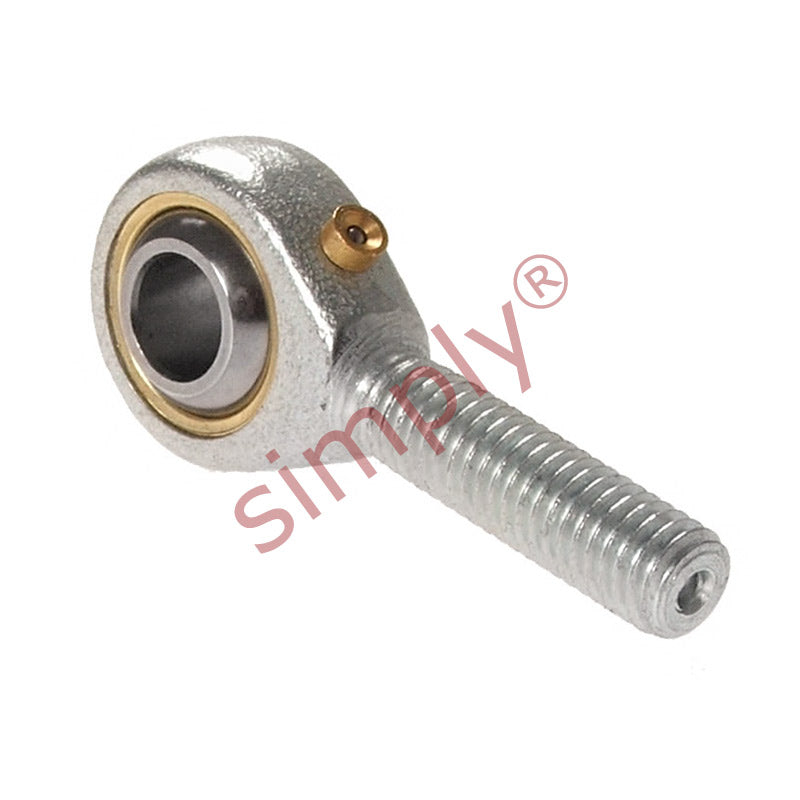

Budget POS12 Right Hand Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Budget POS12 Right Hand Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Regular price
$16.83
ex VAT
Regular price
Sale price
$16.83
ex VAT
In stock
Price Break
10+
$14.98
19+
$14.14
29+
$13.97
39+
$13.80
49+
$13.63
74+
$13.46
99+
$12.62
199+
$12.45
249+
$12.29
499+
$12.12
999+
$11.78
Couldn't load pickup availability
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M12x1.75
- Thread Direction:
- Right Hand
- Liner Type:
- PTFE Lined
Technical
Technical
| d | 12mm |
|---|---|
| B | 16mm |
| r1 | 0.6mm |
| C1 | 12mm |
| d1 max | 15.4mm |
| d2 | 30mm |
| d3 | M12x1.75 |
| h | 54mm |
| l1 | 33mm |
| l2 | 69mm |
| Ball diameter | 7/8 inch |
| Dynamic load Cr | 13.3 kN |
| Static load Cor | 17.3 kN |
| Max angle α | 13 |
| Weight | 0.085 kg |
