SKU: PNA25/47-EU
PNA25/47 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 25x47x20
PNA25/47 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 25x47x20
Regular price
$53.10
ex VAT
Regular price
Sale price
$53.10
ex VAT
In stock
Price Break
10+
$25.08
19+
$23.67
29+
$23.39
39+
$23.11
49+
$22.83
74+
$22.55
99+
$21.14
199+
$20.86
249+
$20.57
499+
$20.29
999+
$19.73
Description
Description
|

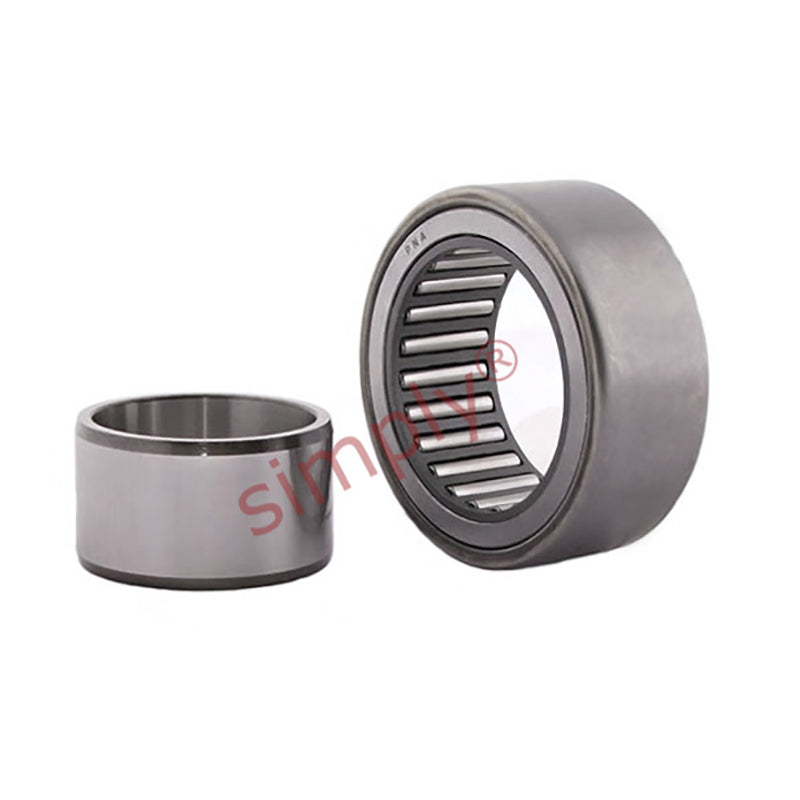

Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 20mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 20mm |
| Dynamic load C | 22900 N |
| Static load Co | 38000 N |
| Fatigue load limit Pu | 4800 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 30mm |
| D1 | 42mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 25mm |
| Da min | 41mm |
| Da max | 42mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 160 g |
