SKU: PNA15/32-MB

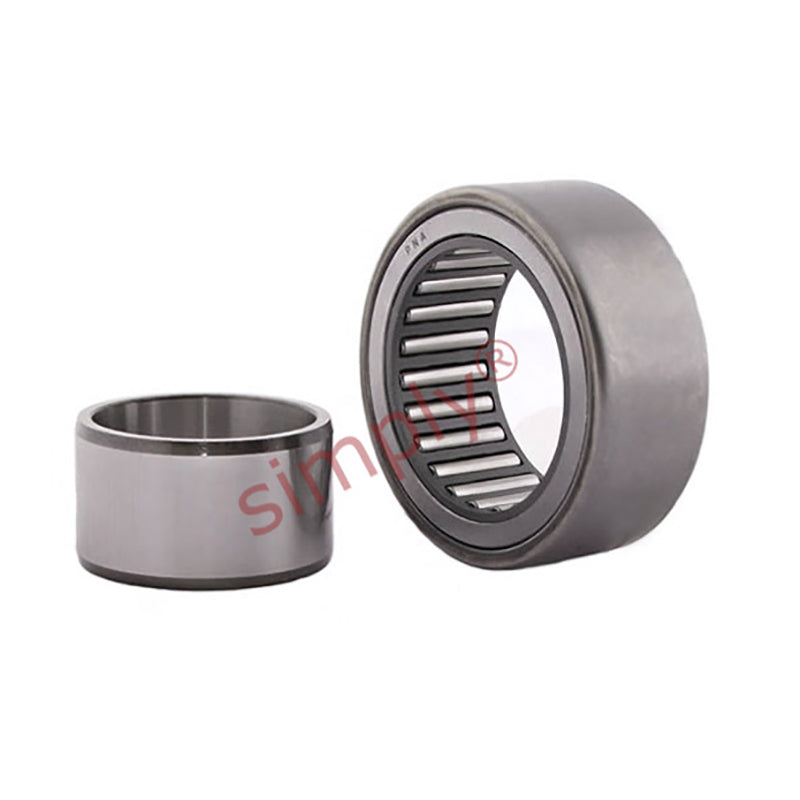

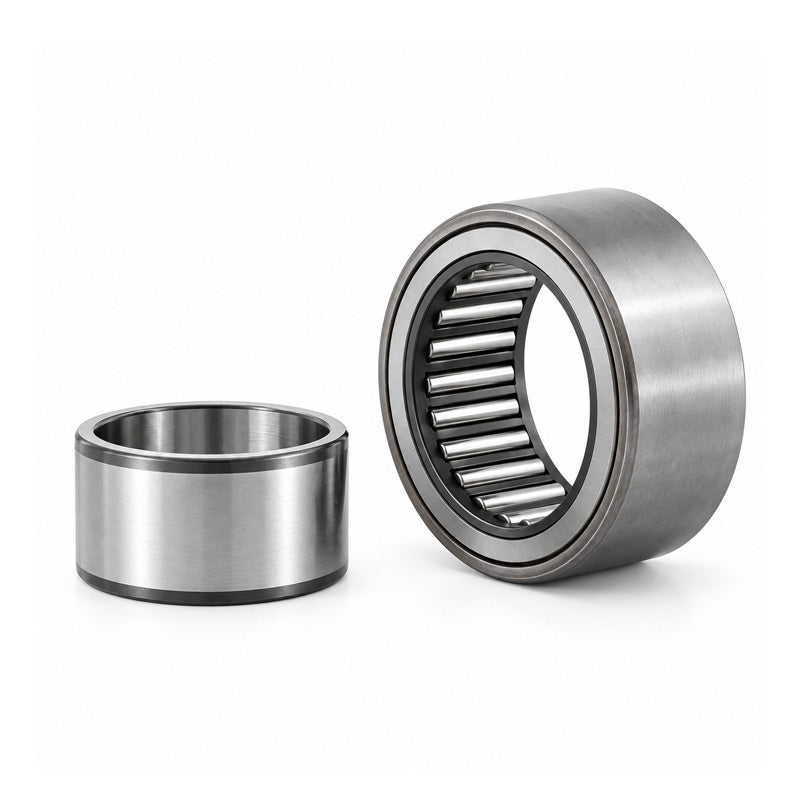

Major Brand PNA15/32 Needle Roller Bearing Alignment Type With Shaft Sleeve 15x32x16
Major Brand PNA15/32 Needle Roller Bearing Alignment Type With Shaft Sleeve 15x32x16
Regular price
$87.88
ex VAT
Regular price
Sale price
$87.88
ex VAT
In stock
Price Break
10+
$78.21
19+
$73.82
29+
$72.94
39+
$72.06
49+
$71.18
74+
$70.30
99+
$65.91
199+
$65.03
249+
$64.15
499+
$63.27
999+
$61.52
Couldn't load pickup availability
Description
Description
|
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 16mm |
| Dynamic load | 12800 N |
| Static load | 17600 N |
| Fatigue load limit Pu | 2120 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| F | 18mm |
| D1 | 27mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 17mm |
| Da min | 26 |
