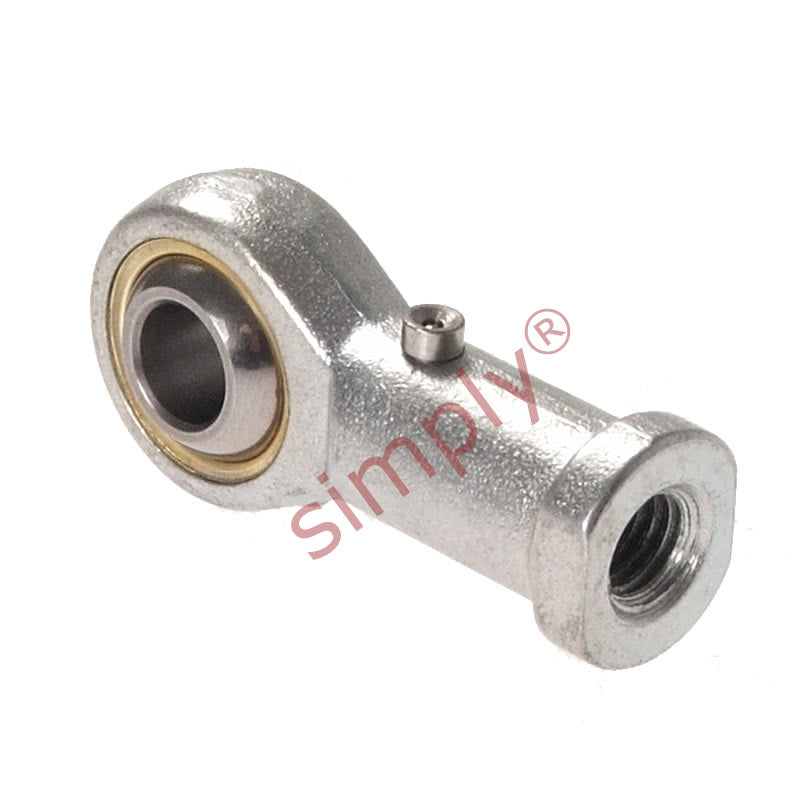

Budget PHS16L Left Hand Steel / Bronze Lined Plain Female Rod End 16mm Bore M16x2 Thread

Name: Budget PHS16L Left Hand Steel / Bronze Lined Plain Female Rod End 16mm Bore M16x2 Thread
Brand: Gen
SKU: PHS16L.EU
Price: 16.77 CAD
Availability: InStock

$16.77 ex VAT

Sale Sold out

Equivalent to: SILKAC16M FBL-M16

In stock

Price Break

10+ $7.92

19+ $7.48

29+ $7.39

39+ $7.30

49+ $7.21

74+ $7.12

99+ $6.68

199+ $6.59

249+ $6.50

499+ $6.41

999+ $6.23

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Equivalent: SILKAC16M FBL-M16

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M16x2
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 16mm
Material:: Bronze Lined

Technical

d	16mm
B	21mm
r1	0.6mm
C1	15mm
d1 max	19.3mm
d2	38mm
d3	M16x2
h1	64mm
L3	33mm
L4	83mm
L5	8mm
d4	22mm
d5	27mm
S	22mm
Ball diameter	1-1/8 inch
Dynamic load Cr	21.4 kN
Static load Cor	25.9 kN
Max angle α	15
Weight	0.21 kg
