SKU: PHS16.EU

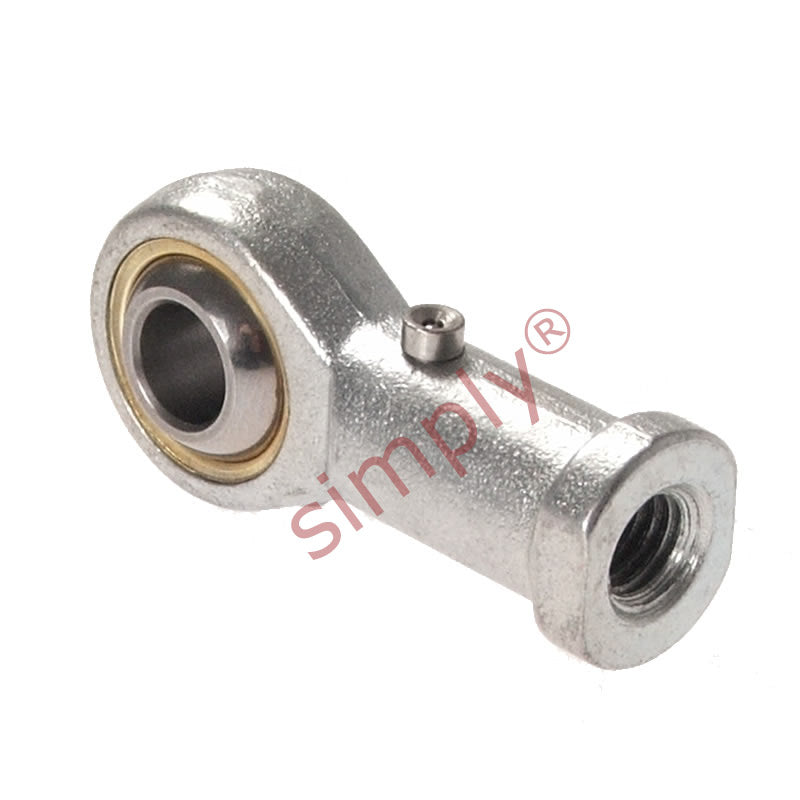

Budget PHS16 Right Hand Steel / Bronze Lined Plain Female Rod End 16mm Bore M16x2 Thread
Budget PHS16 Right Hand Steel / Bronze Lined Plain Female Rod End 16mm Bore M16x2 Thread
Regular price
$14.89
ex VAT
Regular price
Sale price
$14.89
ex VAT
Equivalent to: GIKFR16PB SIKAC16M SF16 FB-M16
In stock
Price Break
10+
$7.03
19+
$6.64
29+
$6.56
39+
$6.48
49+
$6.40
74+
$6.32
99+
$5.93
199+
$5.85
249+
$5.77
499+
$5.69
999+
$5.53
Share this product
Description
Description
|
Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GIKFR16PB SIKAC16M SF16 FB-M16
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- Bronze Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x2 |
| h1 | 64mm |
| L3 | 33mm |
| L4 | 83mm |
| L5 | 8mm |
| d4 | 22mm |
| d5 | 27mm |
| S | 22mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4 kN |
| Static load Cor | 25.9 kN |
| Max angle α | 15 |
| Weight | 0.21 kg |
