SKU: PBS-DS-10B-17

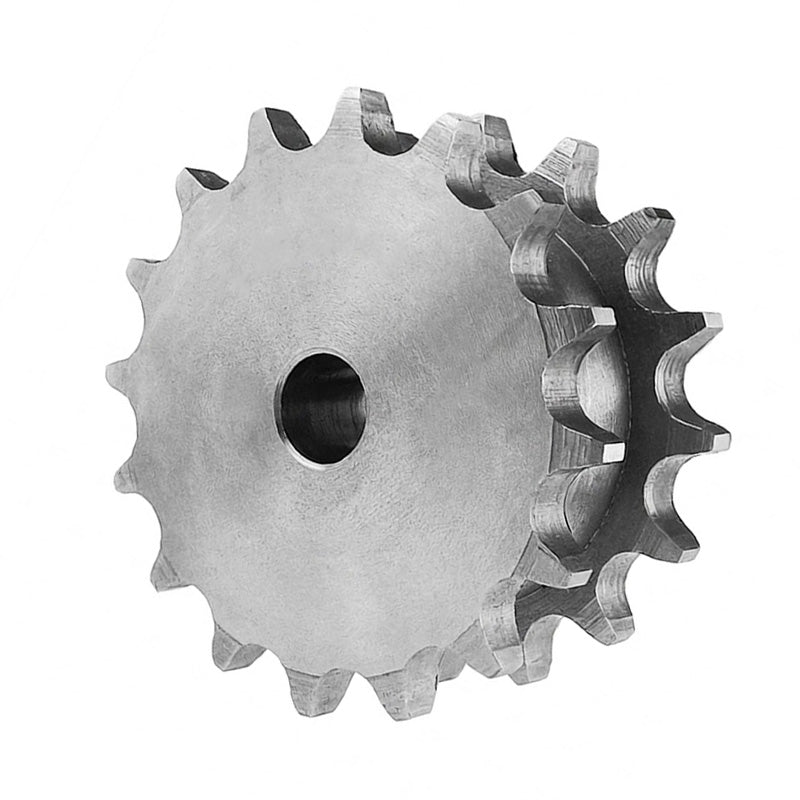

17 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
17 Tooth 10B Pilot Bore Double Simplex Sprocket for 5/8 inch Pitch Chain
Regular price
$38.87
ex VAT
Regular price
Sale price
$38.87
ex VAT
Equivalent to: 661-025 DS10B1-17 5DS19
In stock
Price Break
10+
$34.59
19+
$32.65
29+
$32.26
39+
$31.87
49+
$31.48
74+
$31.10
99+
$29.15
199+
$28.76
249+
$28.38
499+
$27.99
999+
$27.21
Couldn't load pickup availability
Description
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-025 DS10B1-17 5DS19
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-025 DS10B1-17 5DS19
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 17
- Pitch:
- 15.88mm = 0.625 (5/8) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 17 |
|---|---|
| Pitch Diameter dp | 86.39mm |
| Outer Diameter de | 93mm |
| Width B | 36.5mm |
| Hub Diameter N | 70mm |
| Chamfer C | 1.6mm |
| Tooth Radius r3 | 16mm |
| Tooth Width b1 | 9.2mm |
| Stock Bore D1 | 19mm |
| Weight | 0.875 kg |
