SKU: P47-SKF
SKF P47 1 Set of Pressed Steel Pillow Block Housing for 201 / 202 / 203 Inserts (Housing Only)
SKF P47 1 Set of Pressed Steel Pillow Block Housing for 201 / 202 / 203 Inserts (Housing Only)
Regular price
$20.62
ex VAT
Regular price
Sale price
$20.62
ex VAT
In stock
Price Break
10+
$18.35
19+
$17.32
29+
$17.11
39+
$16.91
49+
$16.70
74+
$16.50
99+
$15.47
199+
$15.26
249+
$15.05
499+
$14.85
999+
$14.43
Couldn't load pickup availability
Description
Description
2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required.
- Brand / Quality:
- SKF - High Quality
- Style:
- P
- Bolt Hole Centres:
- 76mm

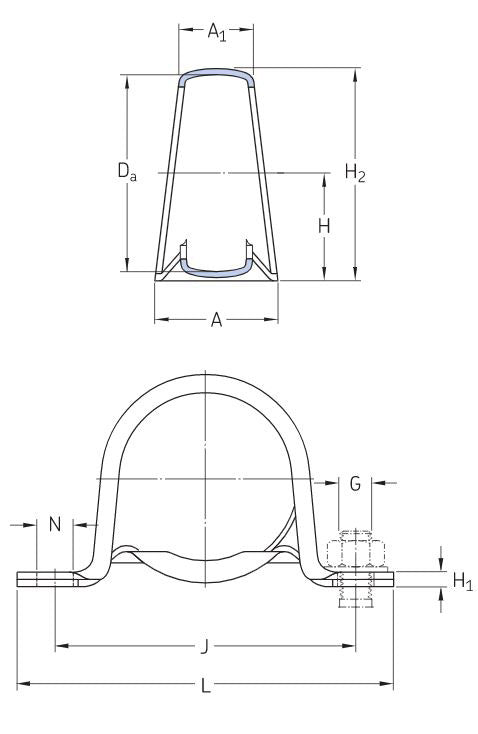

Technical
Technical
| Da | 47mm |
|---|---|
| A | 32mm |
| A1 | 21mm |
| H | 25.3mm |
| H1 | 3mm |
| H2 | 50.5mm |
| J | 76mm |
| L | 98.5mm |
| N | 9.6mm |
| Permissible radial load | max. 1.7 kN |
| Recommended diameter for attachment bolts (G) | 8mm |
| Weight | 0.09 kg |
