SKU: NUP204EM-ROLLWAY

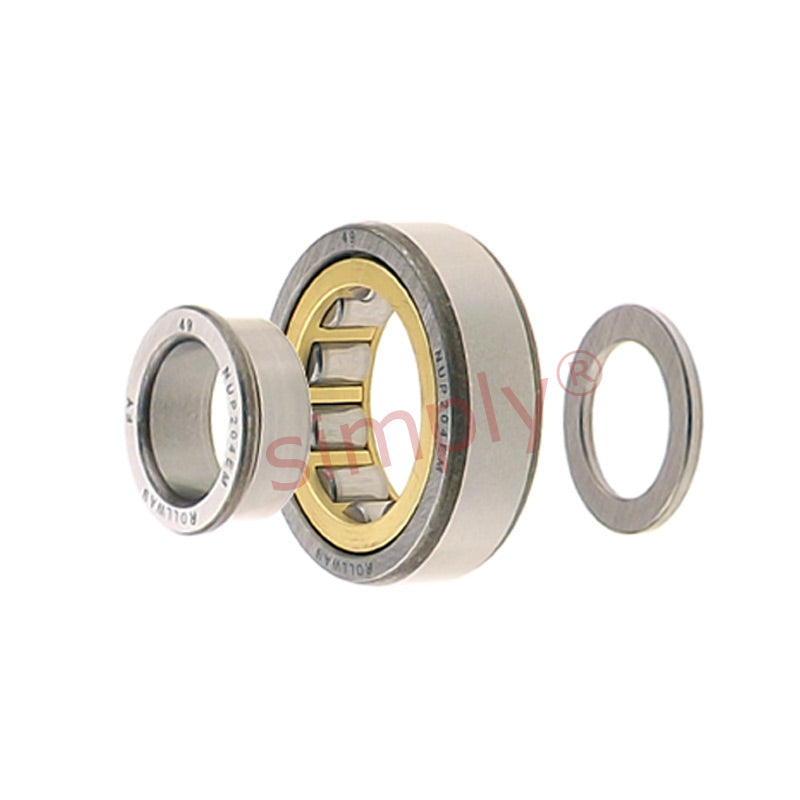

ROLLWAY NUP204EM Single Row Cylindrical Roller Bearing 20x47x14mm
ROLLWAY NUP204EM Single Row Cylindrical Roller Bearing 20x47x14mm
Regular price
$83.92
ex VAT
Regular price
Sale price
$83.92
ex VAT
In stock
Price Break
10+
$39.63
19+
$37.41
29+
$36.96
39+
$36.52
49+
$36.07
74+
$35.63
99+
$33.40
199+
$32.95
249+
$32.51
499+
$32.06
999+
$31.17
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Rollway - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| d1 | 29.7mm |
| D1 | 38.44mm |
| F | 26.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| Basic Dynamic Load Raiting | 28.5 kN |
| Basic Static Load Raiting | 22 kN |
| Reference Speed | 17000 r/min |
| Limiting Speed | 19000 r/min |
| Weight | 0.140 kg |
