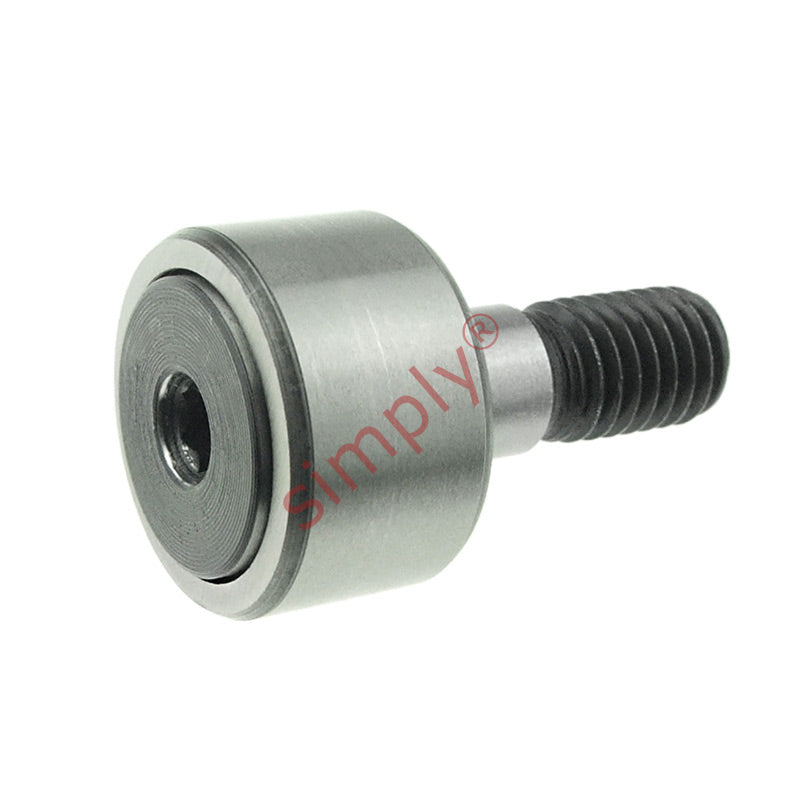

Major Brand NUKR35 Crowned Cam Follower 35x18x16 M16x1.5 Thread
Major Brand NUKR35 Crowned Cam Follower 35x18x16 M16x1.5 Thread
Regular price
$50.90
ex VAT
Regular price
Sale price
$50.90
ex VAT
In stock
Price Break
10+
$24.04
19+
$22.69
29+
$22.42
39+
$22.15
49+
$21.88
74+
$21.61
99+
$20.26
199+
$19.99
249+
$19.72
499+
$19.45
999+
$18.91
Description
Description
NUKR Series Crowned Cam followers: These cam followers incorporate a double-row full complement needle roller assembly allowing for maximum load support manufactured with integral flanges for axial guidance and permitting a thick outer ring allowing for heavy loads and shock to be supported. Sealing is provided by pressed sheet metal labyrinth seals. NUKR series cam followers support both heavy radial and axial loads and can operate at high speeds but require frequent re-lubrication. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 35mm
- Width:
- 18mm
- Pitch:
- M16x1.5
Technical
Technical
| D | 35mm |
|---|---|
| C | 18mm |
| d(Stud Diameter) | 16mm |
| B | 52mm |
| B1 | 32.5mm |
| B2 | 7.8mm |
| C1 | 0.8mm |
| d1 | 20mm |
| G | M16x1.5 |
| G1 | 17mm |
| M1 | 3mm |
| r min | 0.6mm |
| SW | 8mm |
| Dynamic load | 15600 N |
| Static load | 18600 N |
| Fatigue load limit Pu | 2480 N |
| Radial dynamic load | 8500 N |
| Radial static load | 16800 N |
| Speed rating | 6500 rpm |
| Weight | 160 g |
