SKU: NU407-EU

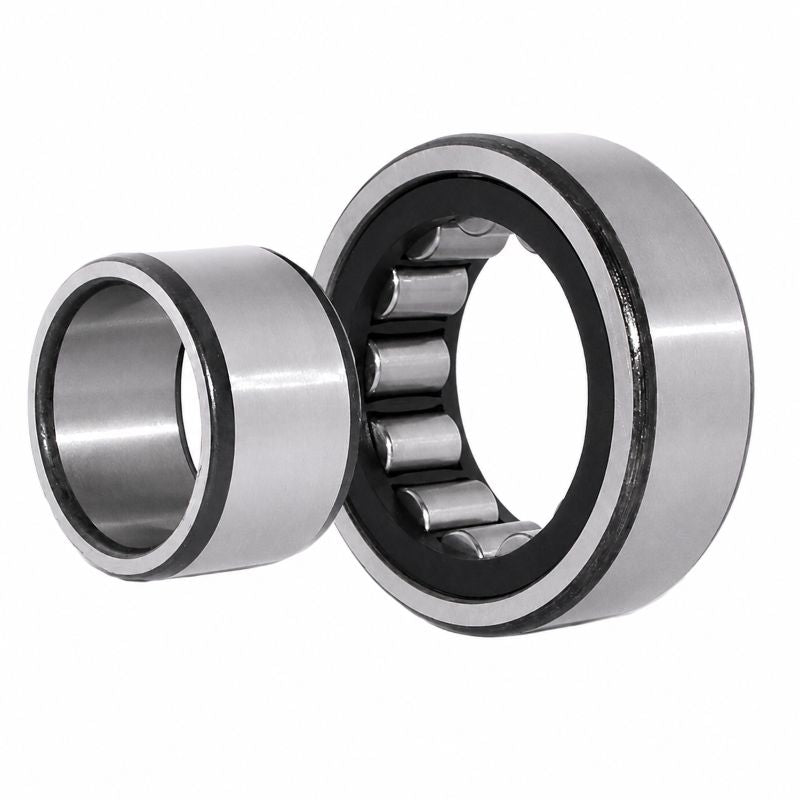

NU407 Budget Single Row Cylindrical Roller Bearing 35x100x25mm
NU407 Budget Single Row Cylindrical Roller Bearing 35x100x25mm
Regular price
$74.02
ex VAT
Regular price
Sale price
$74.02
ex VAT
In stock
Price Break
10+
$34.96
19+
$33.00
29+
$32.60
39+
$32.21
49+
$31.82
74+
$31.42
99+
$29.46
199+
$29.07
249+
$28.67
499+
$28.28
999+
$27.50
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 76.5 kN |
| Static load Co | 69.5 kN |
| Fatigue load limit Pu | 9 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 1 kg |
| D1 | 76.1mm |
| F, E | 53mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.7mm |
| da min | 46mm |
| da max | 50mm |
| db min | 55mm |
| Da max | 89mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
