SKU: NTB1629-MB

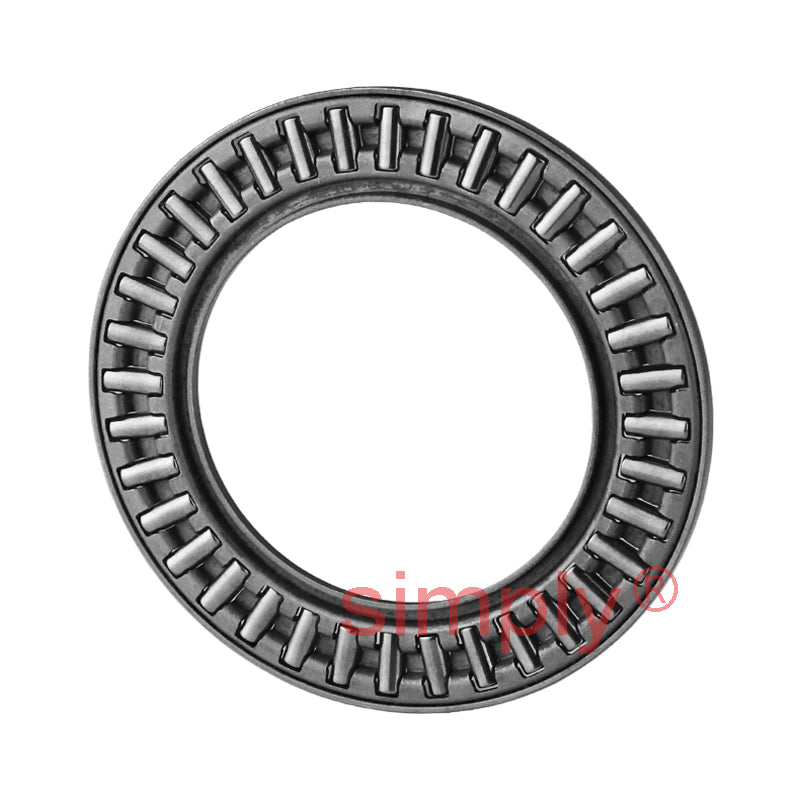

NTB1629 Needle Roller Thrust Bearing Cage Only 16x29x2mm
NTB1629 Needle Roller Thrust Bearing Cage Only 16x29x2mm
Regular price
$6.16
ex VAT
Regular price
Sale price
$6.16
ex VAT
Equivalent to: AXK1629 FNT1629
In stock
Price Break
10+
$5.48
19+
$5.17
29+
$5.11
39+
$5.05
49+
$4.99
74+
$4.93
99+
$4.62
199+
$4.56
249+
$4.50
499+
$4.44
999+
$4.31
Couldn't load pickup availability
Description
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
Equivalent: AXK1629 FNT1629
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 29mm
- Width:
- 2mm
Technical
Technical
| D | 29mm |
|---|---|
| Dw | 2mm |
| d | 16mm |
| Dynamic Load Cor | 9070 N |
| Static Load Cr | 31400 N |
| Weight | 0.0043 kg |
