SKU: NTB.90120

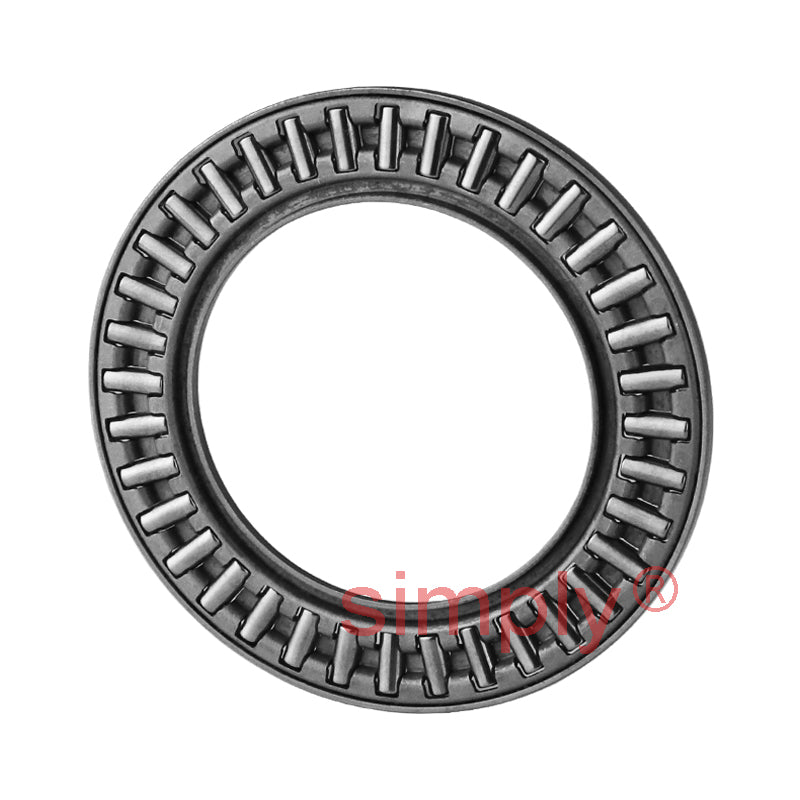

NTB90120 Needle Roller Thrust Bearing Cage Only 90x120x4mm
NTB90120 Needle Roller Thrust Bearing Cage Only 90x120x4mm
Regular price
$14.62
ex VAT
Regular price
Sale price
$14.62
ex VAT
Equivalent to: AXK90120 FNTA90120
In stock
Price Break
10+
$13.01
19+
$12.28
29+
$12.13
39+
$11.99
49+
$11.84
74+
$11.70
99+
$10.97
199+
$10.82
249+
$10.67
499+
$10.53
999+
$10.23
Couldn't load pickup availability
Description
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
Equivalent: AXK90120 FNTA90120
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 120mm
- Width:
- 4mm
Technical
Technical
| D | 120mm |
|---|---|
| Dw | 4mm |
| d | 90mm |
| Dynamic Load Cor | 64500 N |
| Static Load Cr | 394000 N |
| Weight | 0.092 kg |
