SKU: NTB.1831

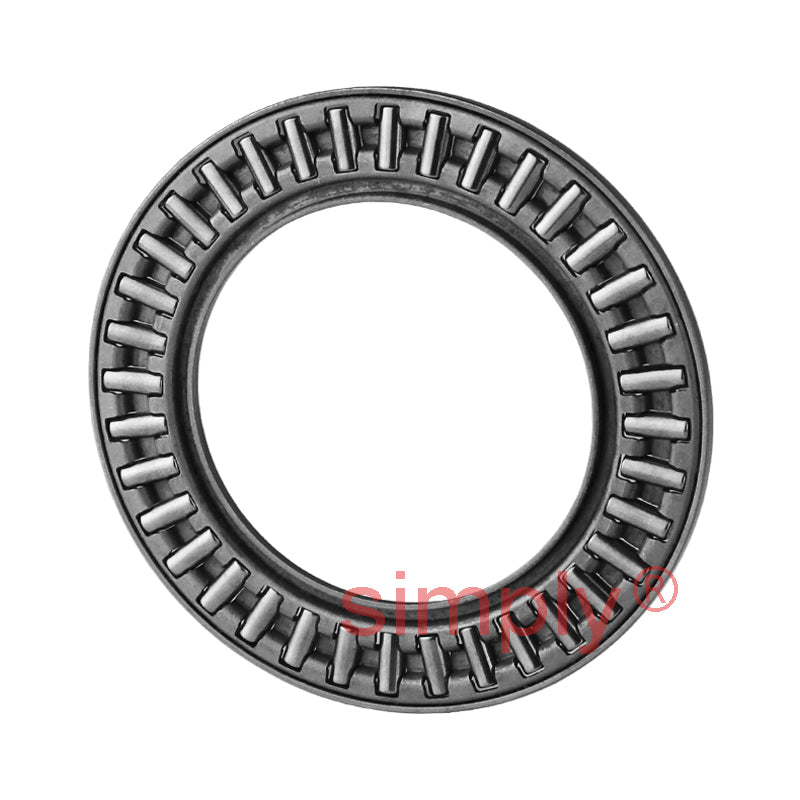

NTB1831 Needle Roller Thrust Bearing Cage Only 18x31x2mm
NTB1831 Needle Roller Thrust Bearing Cage Only 18x31x2mm
Regular price
$7.26
ex VAT
Regular price
Sale price
$7.26
ex VAT
In stock
Price Break
10+
$6.46
19+
$6.10
29+
$6.03
39+
$5.95
49+
$5.88
74+
$5.81
99+
$5.45
199+
$5.37
249+
$5.30
499+
$5.23
999+
$5.08
Couldn't load pickup availability
Description
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 31mm
- Width:
- 2mm
Technical
Technical
| D | 31mm |
|---|---|
| Dw | 2mm |
| d | 18mm |
| Dynamic Load Cor | 9550 N |
| Static Load Cr | 34400 N |
| Weight | 0.0047 kg |
