SKU: NN3030 K/SPW33-SKF

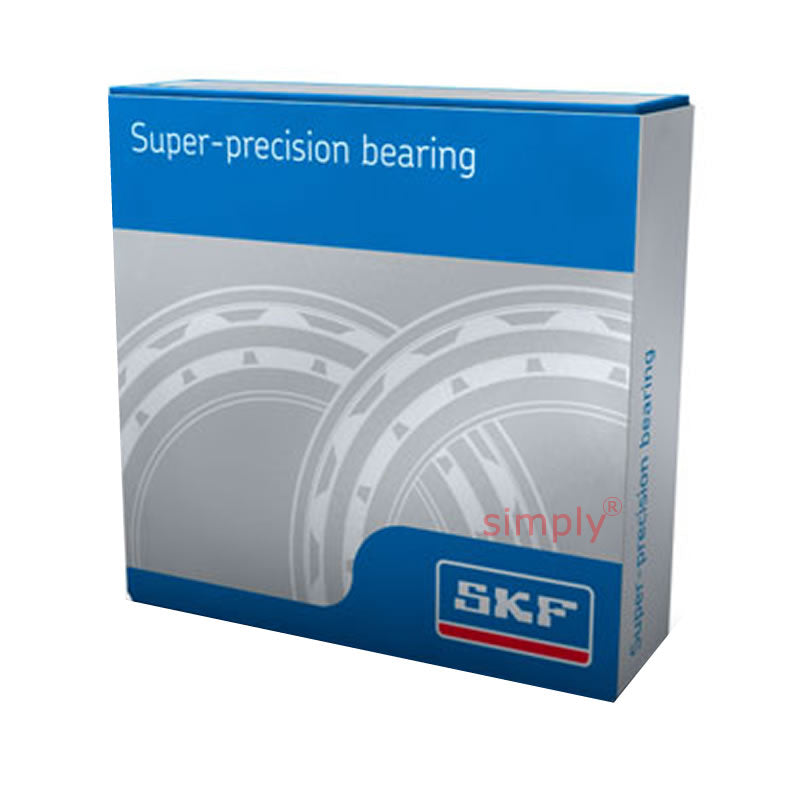

SKF NN3030KSPW33 Super Precision Double Row Cylindrical Roller Spindle Bearing 150x225x56mm
SKF NN3030KSPW33 Super Precision Double Row Cylindrical Roller Spindle Bearing 150x225x56mm
Regular price
$1,695.35
ex VAT
Regular price
Sale price
$1,695.35
ex VAT
In stock
Price Break
3+
$800.68
5+
$755.70
10+
$746.70
25+
$737.70
49+
$728.71
74+
$719.71
17+
$674.73
117+
$665.73
249+
$656.74
417+
$647.74
179+
$629.75
Description
Description
SKF Super Precision Double Row Cylindrical Roller Bearings: Double row cylindrical roller bearings SKF super-precision double row cylindrical roller bearings are manufactured as standard in the NN 30 and NNU 49 series. Both series are available with either a cylindrical or a 1:12 tapered bore (designation suffix K). In machine tool applications, cylindrical roller bearings with a tapered bore are preferred over bearings with a cylindrical bore, because the taper enables more accurate adjustment of clearance or preload during mounting.
Benefits: High-speed capability, high radial load carrying capacity, high rigidity, low friction, low cross-sectional height.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 225mm
- Width:
- 56mm
- Seals / Shields:
- None
- Style:
- Super Precision Cylindrical Roller Bearings
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 150mm |
| D | 225mm |
| B | 56mm |
| --- | Speeds and loads |
| Dynamic load C | 330 Kn |
| Static load C<sub>o</sub> | 570 kn |
| Fatigue load P<sub>u</sub> | 62 kN |
| Speed in grease | 3800rpm |
| Speeed in oil | 4300rpm |
| Weight | 7.3kg |
| --- | Abutment and fillet dimensions |
| d<sub>1</sub> | 179mm |
| E | 206mm |
| b | 8.7mm |
| K | 4.5mm |
| r<sub>1 and 2 min</sub> | 2.1mm |
| r<sub>3 and 4 min</sub> | 1.1mm |
| S<sup>2</sup> | 2.5mm |
| d<sub>a</sub> min | 161mm |
| D<sub>a min</sub> | 208mm |
| D<sub>a max</sub> | 214mm |
| d<sub>n</sub> | 2mm |
| d<sub>n</sub> | 201.7mm |
| Reference grease quantity | 63 grams |
