SKU: NKXR50Z-EU

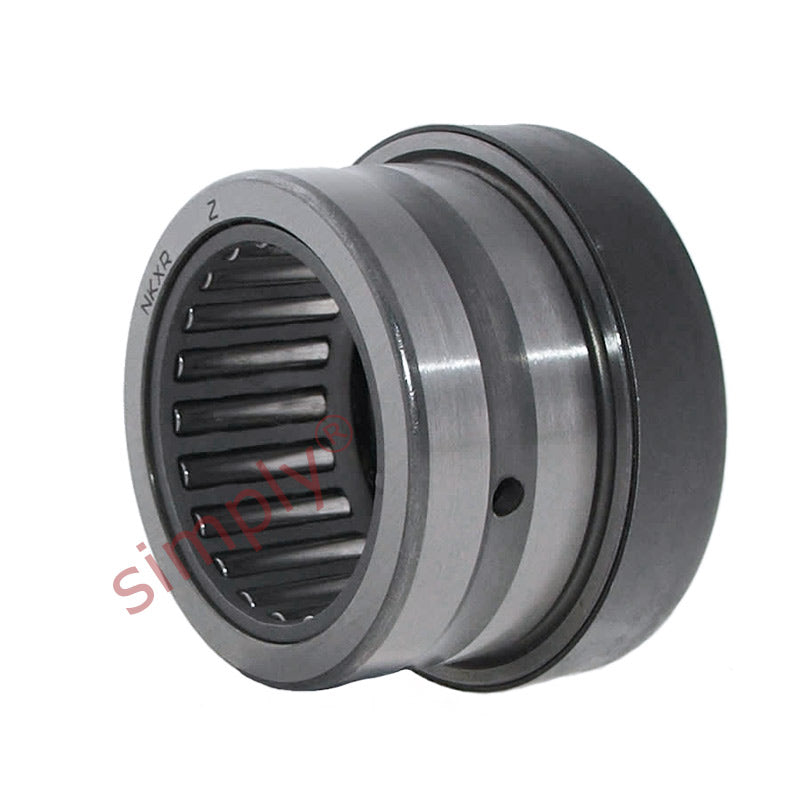

NKXR50Z Budget Needle Roller Thrust Bearing with Cover 50x62x35mm
NKXR50Z Budget Needle Roller Thrust Bearing with Cover 50x62x35mm
Regular price
$95.15
ex VAT
Regular price
Sale price
$95.15
ex VAT
In stock
Price Break
10+
$44.94
19+
$42.41
29+
$41.91
39+
$41.40
49+
$40.90
74+
$40.39
99+
$37.87
199+
$37.36
249+
$36.86
499+
$36.35
999+
$35.34
Description
Description
|
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 35mm |
| Dynamic load | 38000 N |
| Static load | 80000 N |
| Axial dynamic load | 47500 N |
| Axial static load | 166000 N |
| Fatigue load limit radial Pu | 9650 N |
| Fatigue load limit axial Pu | 16600 N |
| Min load factor A | 2.2 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 10mm |
| d | 50mm |
| D2 | 71.5mm |
| r1r2 min | 0.6mm |
| da | 65.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 45mm |
| F | 50mm |
| B1 | 25mm |
| Inner ring | IR45x50x25 |
| Weight | 290 g |
