SKU: NKXR30-MB

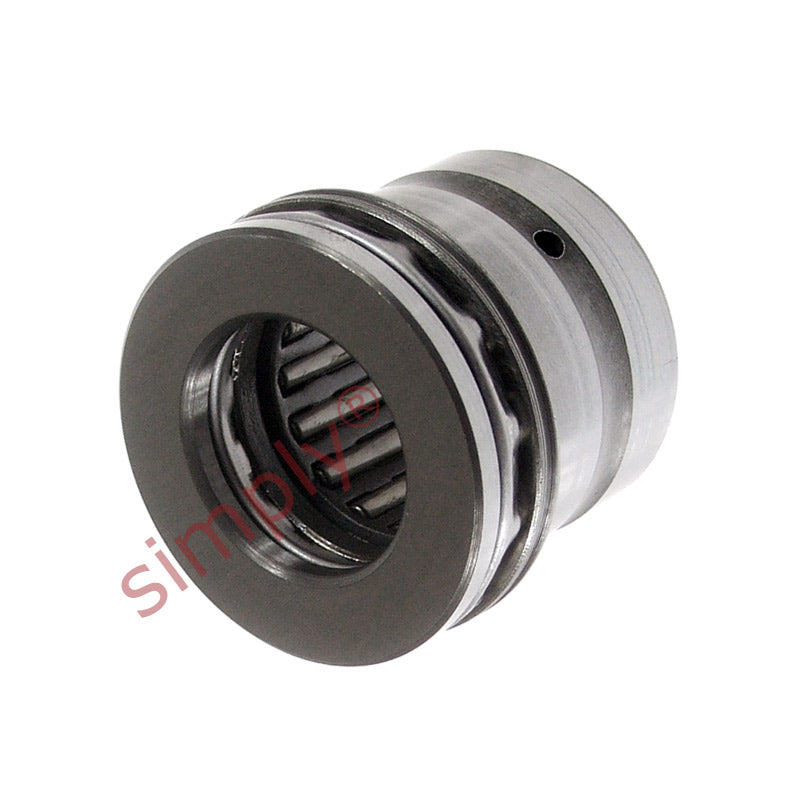

Major Brand NKXR30 Needle Roller Thrust Bearing without Cover 30x42x30mm
Major Brand NKXR30 Needle Roller Thrust Bearing without Cover 30x42x30mm
Regular price
$214.08
ex VAT
Regular price
Sale price
$214.08
ex VAT
In stock
Price Break
10+
$101.11
19+
$95.43
29+
$94.29
39+
$93.15
49+
$92.02
74+
$90.88
99+
$85.20
199+
$84.07
249+
$82.93
499+
$81.79
999+
$79.52
Description
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 42mm |
| C | 30mm |
| Dynamic load | 22900 N |
| Static load | 39000 N |
| Axial dynamic load | 27000 N |
| Axial static load | 78000 N |
| Fatigue load limit radial Pu | 4800 N |
| Fatigue load limit axial Pu | 7650 N |
| Min load factor A | 0.49 |
| Speed in grease | 2000 rpm |
| Speed in oil | 3000 rpm |
| C1 | 11mm |
| C2 | 9.5mm |
| d | 30 |
