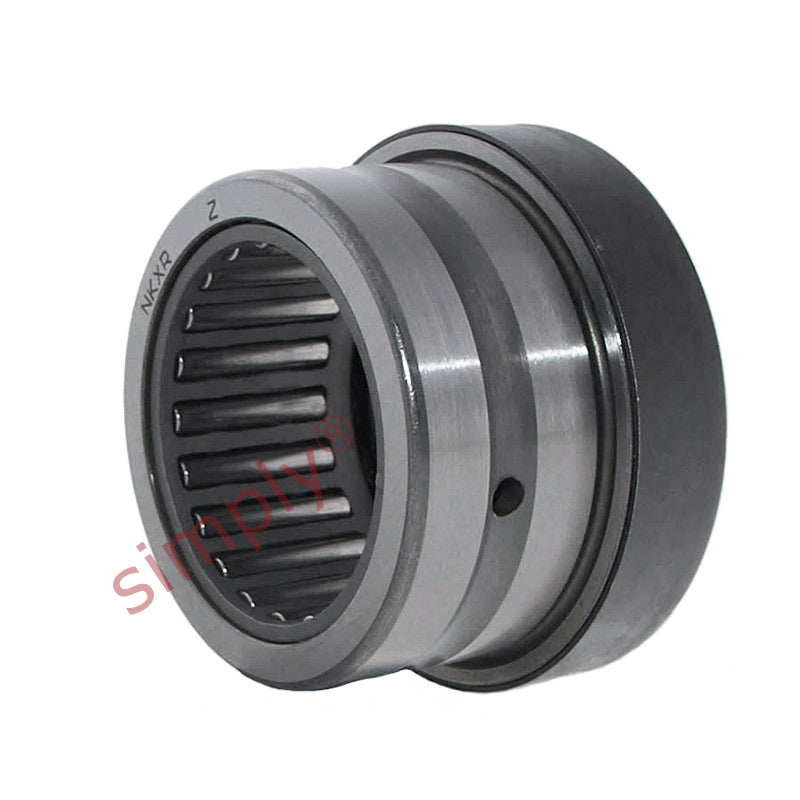

NKXR25Z Budget Needle Roller Thrust Bearing with Cover 25x37x30mm
NKXR25Z Budget Needle Roller Thrust Bearing with Cover 25x37x30mm
Regular price
$33.09
ex VAT
Regular price
Sale price
$33.09
ex VAT
In stock
Price Break
10+
$15.63
19+
$14.75
29+
$14.57
39+
$14.40
49+
$14.22
74+
$14.05
99+
$13.17
199+
$12.99
249+
$12.82
499+
$12.64
999+
$12.29
Description
Description
|
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 37mm
- Width:
- 30mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 37mm |
| C | 30mm |
| Dynamic load | 19000 N |
| Static load | 32500 N |
| Axial dynamic load | 25000 N |
| Axial static load | 69500 N |
| Fatigue load limit radial Pu | 4000 N |
| Fatigue load limit axial Pu | 6800 N |
| Min load factor A | 0.39 |
| Speed in grease | 2200 rpm |
| Speed in oil | 3200 rpm |
| C1 | 11mm |
| C2 | 9.5mm |
| d | 25mm |
| D2 | 43.2mm |
| r1r2 min | 0.6mm |
| da | 37.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 20mm |
| F | 25mm |
| B1 | 20mm |
| Inner ring | IR20x25x20 |
| Weight | 130 g |
