SKU: NKXR25-MB

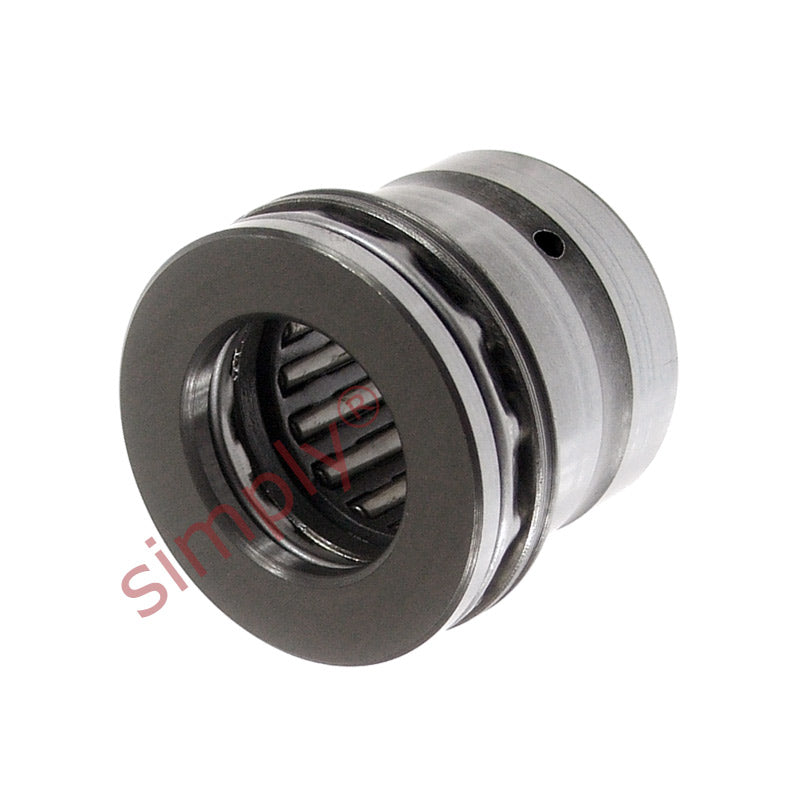

Major Brand NKXR25 Needle Roller Thrust Bearing without Cover 25x37x30mm
Major Brand NKXR25 Needle Roller Thrust Bearing without Cover 25x37x30mm
Regular price
$191.31
ex VAT
Regular price
Sale price
$191.31
ex VAT
In stock
Price Break
10+
$170.27
19+
$160.70
29+
$158.79
39+
$156.87
49+
$154.96
74+
$153.05
99+
$143.48
199+
$141.57
249+
$139.66
499+
$137.74
999+
$133.92
Couldn't load pickup availability
Description
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 37mm
- Width:
- 30mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 37mm |
| C | 30mm |
| Dynamic load | 19000 N |
| Static load | 32500 N |
| Axial dynamic load | 25000 N |
| Axial static load | 69500 N |
| Fatigue load limit radial Pu | 4000 N |
| Fatigue load limit axial Pu | 6800 N |
| Min load factor A | 0.39 |
| Speed in grease | 2200 rpm |
| Speed in oil | 3200 rpm |
| C1 | 11mm |
| C2 | 9.5mm |
| d | 25 |
