SKU: NKXR25-EU

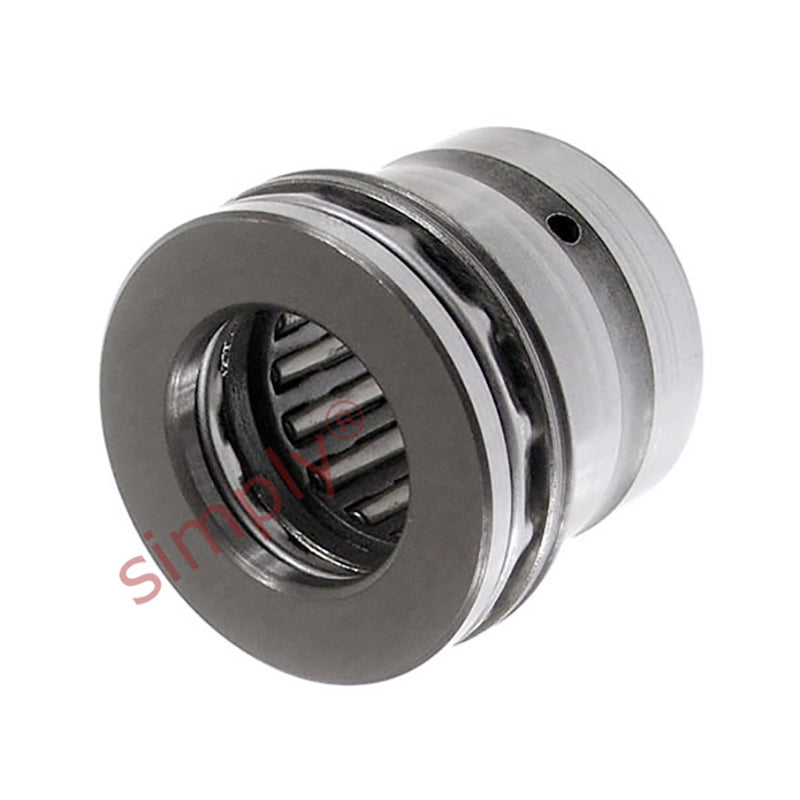

NKXR25 Budget Needle Roller Thrust Bearing without Cover 25x37x30mm
NKXR25 Budget Needle Roller Thrust Bearing without Cover 25x37x30mm
Regular price
$22.99
ex VAT
Regular price
Sale price
$22.99
ex VAT
In stock
Price Break
10+
$10.86
19+
$10.25
29+
$10.13
39+
$10.00
49+
$9.88
74+
$9.76
99+
$9.15
199+
$9.03
249+
$8.91
499+
$8.78
999+
$8.54
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 37mm
- Width:
- 30mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 37mm |
| C | 30mm |
| Dynamic load | 19000 N |
| Static load | 32500 N |
| Axial dynamic load | 25000 N |
| Axial static load | 69500 N |
| Fatigue load limit radial Pu | 4000 N |
| Fatigue load limit axial Pu | 6800 N |
| Min load factor A | 0.39 |
| Speed in grease | 2200 rpm |
| Speed in oil | 3200 rpm |
| C1 | 11mm |
| C2 | 9.5mm |
| d | 25mm |
| D1 | 42mm |
| r1r2 min | 0.6mm |
| da | 37.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 20mm |
| F | 25mm |
| B1 | 20mm |
| Inner ring | IR20x25x20 |
| Weight | 120 g |
