SKU: NKXR17Z-EU

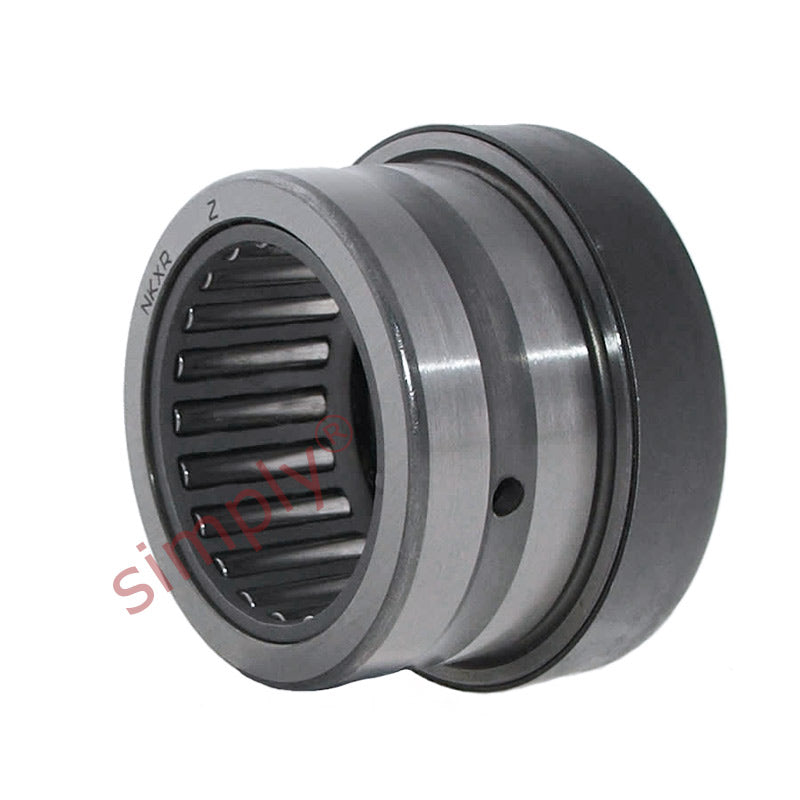

NKXR17Z Budget Needle Roller Thrust Bearing with Cover 17x26x25mm
NKXR17Z Budget Needle Roller Thrust Bearing with Cover 17x26x25mm
Regular price
$26.80
ex VAT
Regular price
Sale price
$26.80
ex VAT
In stock
Price Break
10+
$12.66
19+
$11.94
29+
$11.80
39+
$11.66
49+
$11.52
74+
$11.38
99+
$10.67
199+
$10.52
249+
$10.38
499+
$10.24
999+
$9.95
Description
Description
|
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 26mm |
| C | 25mm |
| Dynamic load | 12300 N |
| Static load | 16600 N |
| Axial dynamic load | 12200 N |
| Axial static load | 31500 N |
| Fatigue load limit radial Pu | 1960 N |
| Fatigue load limit axial Pu | 2850 N |
| Min load factor A | 0.079 |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| C1 | 9mm |
| C2 | 8mm |
| d | 17mm |
| D2 | 31.2mm |
| r1r2 min | 0.3mm |
| da | 25.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 14mm |
| F | 17mm |
| B1 | 17mm |
| Inner ring | IR14x17x17 |
| Weight | 53 g |
