SKU: NKXR15-MB

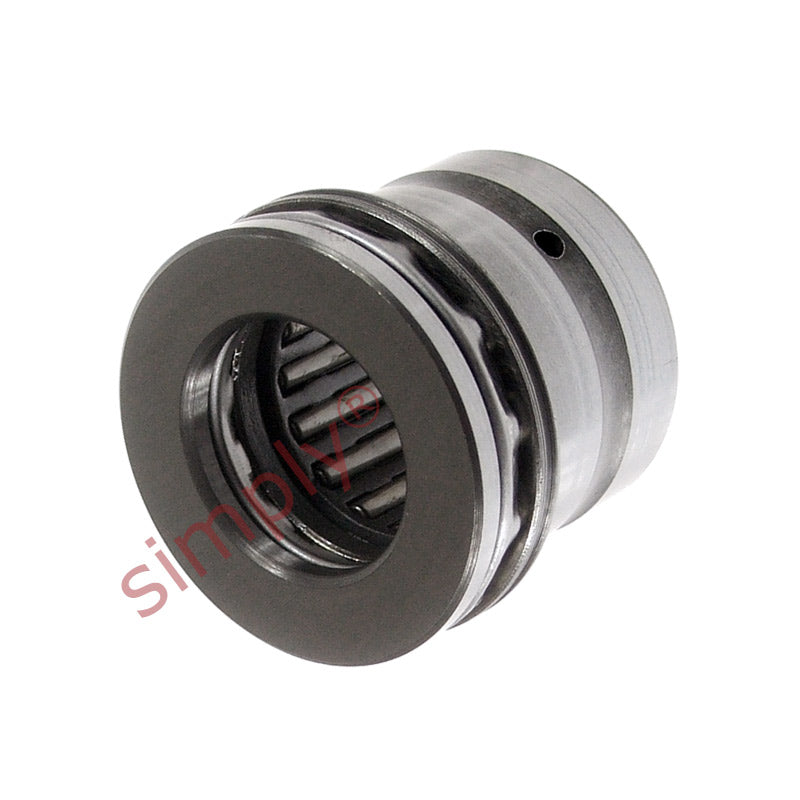

Major Brand NKXR15 Needle Roller Thrust Bearing without Cover 15x24x23mm
Major Brand NKXR15 Needle Roller Thrust Bearing without Cover 15x24x23mm
Regular price
$74.95
ex VAT
Regular price
Sale price
$74.95
ex VAT
In stock
Price Break
10+
$35.40
19+
$33.41
29+
$33.01
39+
$32.61
49+
$32.21
74+
$31.82
99+
$29.83
199+
$29.43
249+
$29.03
499+
$28.63
999+
$27.84
Description
Description
Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 23mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 24mm |
| C | 23mm |
| Dynamic load | 11200 N |
| Static load | 14000 N |
| Axial dynamic load | 11200 N |
| Axial static load | 27000 N |
| Fatigue load limit radial Pu | 1660 N |
| Fatigue load limit axial Pu | 2450 N |
| Min load factor A | 0.058 |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| C1 | 9mm |
| C2 | 6.5mm |
| d | 15 |
