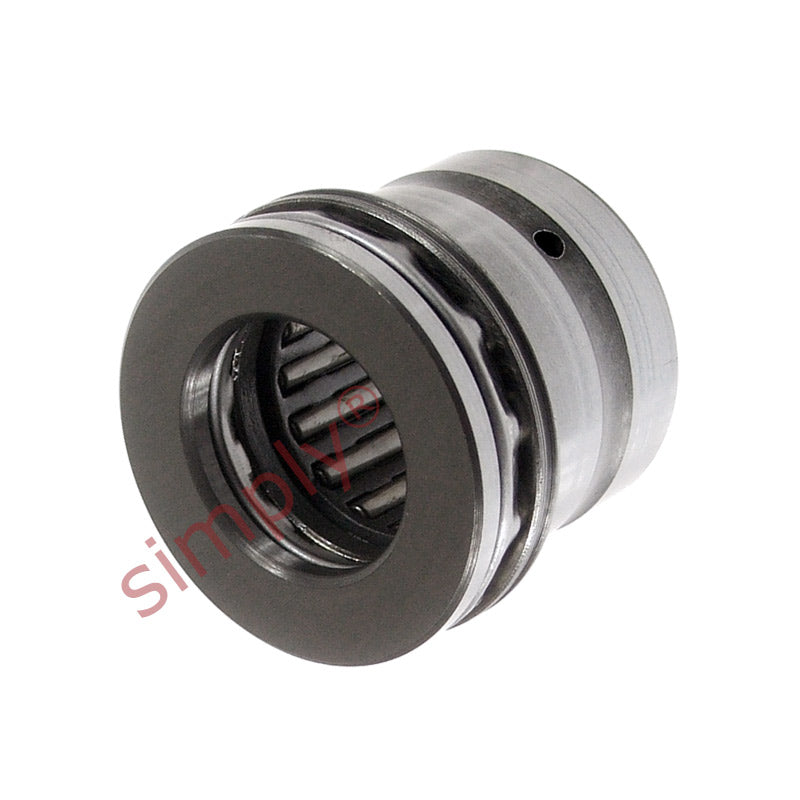

• NKX40 Budget Needle Roller Thrust Ball Bearing Without Cover 40x52x32mm
1 1

SKU: NKX40-EU

NKX40 Budget Needle Roller Thrust Ball Bearing Without Cover 40x52x32mm

NKX40 Budget Needle Roller Thrust Ball Bearing Without Cover 40x52x32mm
$43.47 ex VAT
$43.47 ex VAT
Sale Sold out

In stock

Price Break
10+ $20.53
19+ $19.38
29+ $19.15
39+ $18.92
49+ $18.69
74+ $18.46
99+ $17.30
199+ $17.07
249+ $16.84
499+ $16.61
999+ $16.15
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Ball Thrust Combination: Of a separable design the needle roller and cage assembly with the outer ring and housing washer, the ball and cage thrust assembly can all be mounted separately. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation.
Benefits: High speed / thrust loading, separable design- easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
52mm
Width:
32mm
Technical
Fw 40mm
D 52mm
C 32mm
Radial dynamic load 26400 N
Radial static load 51000 N
Axial dynamic load 27000 N
Axial static load 68000 N
Fatigue load limit radial Pu 6300 N
Fatigue load limit axial Pu 2550 N
Min load factor 24
Speed in grease 3800 rpm
Speed in oil 5000 rpm
C1 13mm
C2 10mm
d 40mm
d1 60mm
D1 60mm
r1r2 min 0.6mm
da min 52mm
ra max 0.6mm
rb max 0.3mm
di 35mm
F 40mm
Bi 20mm
Inner ring IR35x40x20
Weight 200 g
