SKU: NKX30-MB

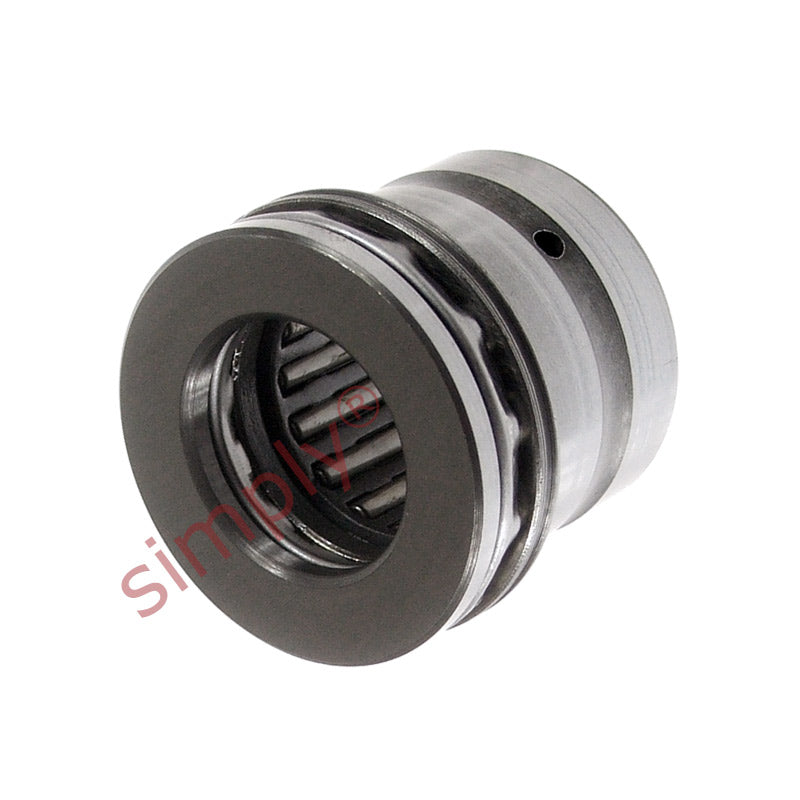

Major Brand NKX30 Needle Roller Thrust Ball Bearing Without Cover 30x42x30mm
Major Brand NKX30 Needle Roller Thrust Ball Bearing Without Cover 30x42x30mm
Regular price
$79.34
ex VAT
Regular price
Sale price
$79.34
ex VAT
In stock
Price Break
10+
$37.47
19+
$35.36
29+
$34.94
39+
$34.52
49+
$34.10
74+
$33.68
99+
$31.58
199+
$31.15
249+
$30.73
499+
$30.31
999+
$29.47
Share this product
Description
Description
Needle Roller / Ball Thrust Combination: Of a separable design the needle roller and cage assembly with the outer ring and housing washer, the ball and cage thrust assembly can all be mounted separately. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 42mm |
| C | 30mm |
| Radial dynamic load | 22900 N |
| Radial static load | 39000 N |
| Axial dynamic load | 20300 N |
| Axial static load | 45500 N |
| Fatigue load limit radial Pu | 4800 N |
| Fatigue load limit axial Pu | 1700 N |
| Min load factor | 10 |
| Speed in grease | 4500 rpm |
| Speed in oil | 6000 rpm |
| C1 | 11mm |
| C2 | 9.5mm |
| d | 30 |
